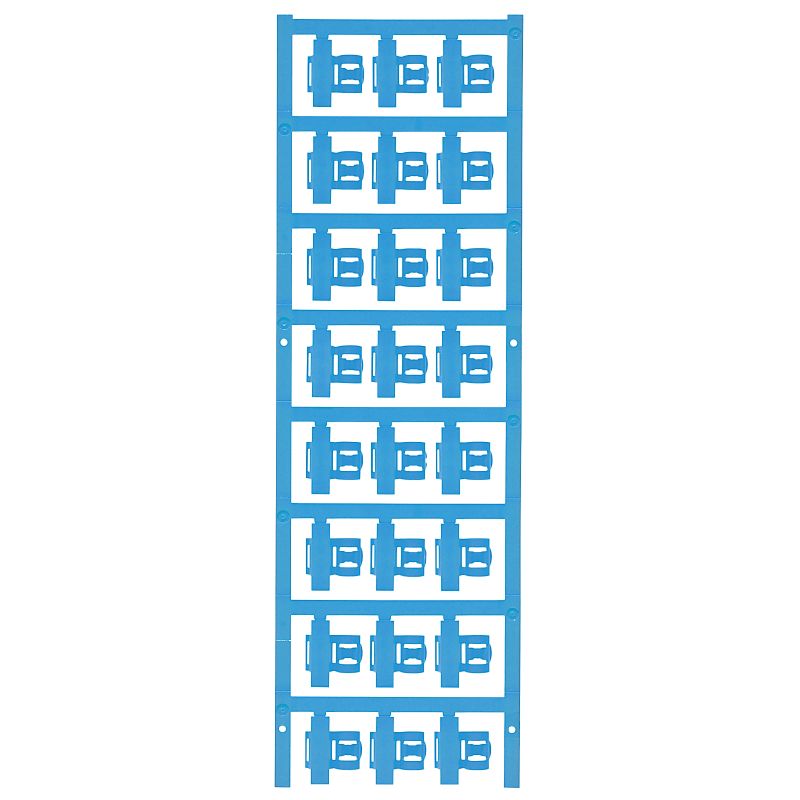

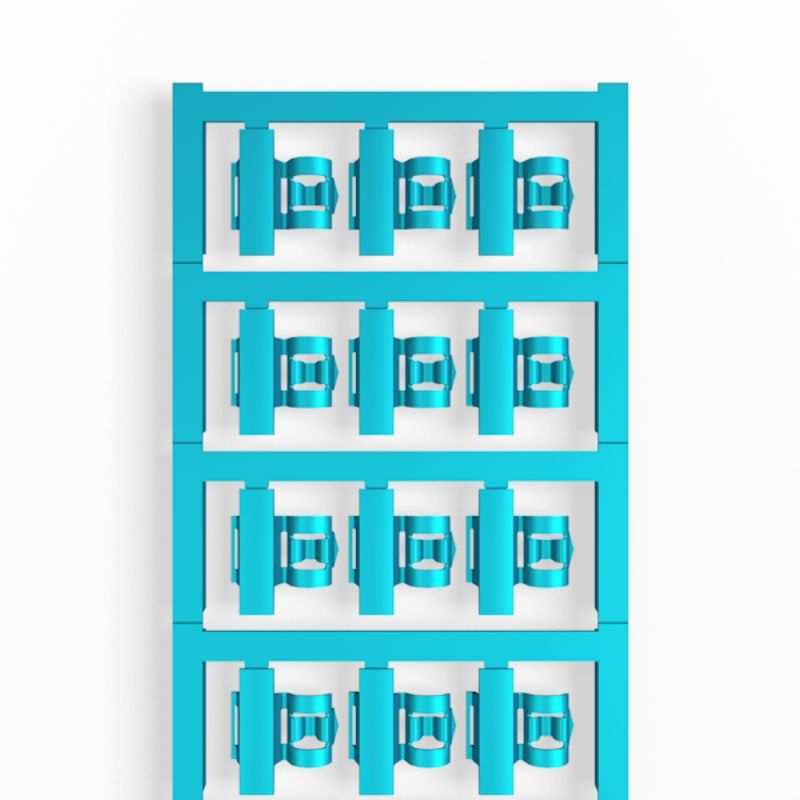

1062090000 - Blue SlimFix Clip for 4-6mm Cables & Markers (Pack of 120)

1062090000 - Blue SlimFix Clip for 4-6mm Cables & Markers (Pack of 120)

SKU: SKU: 1062090000   Download PDF

Select a Variant:
  • 1062090000 - Blue SlimFix Clip for 4-6mm Cables & Markers (Pack of 120)
Qty:
Regular price Now $26.54   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $26.54 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

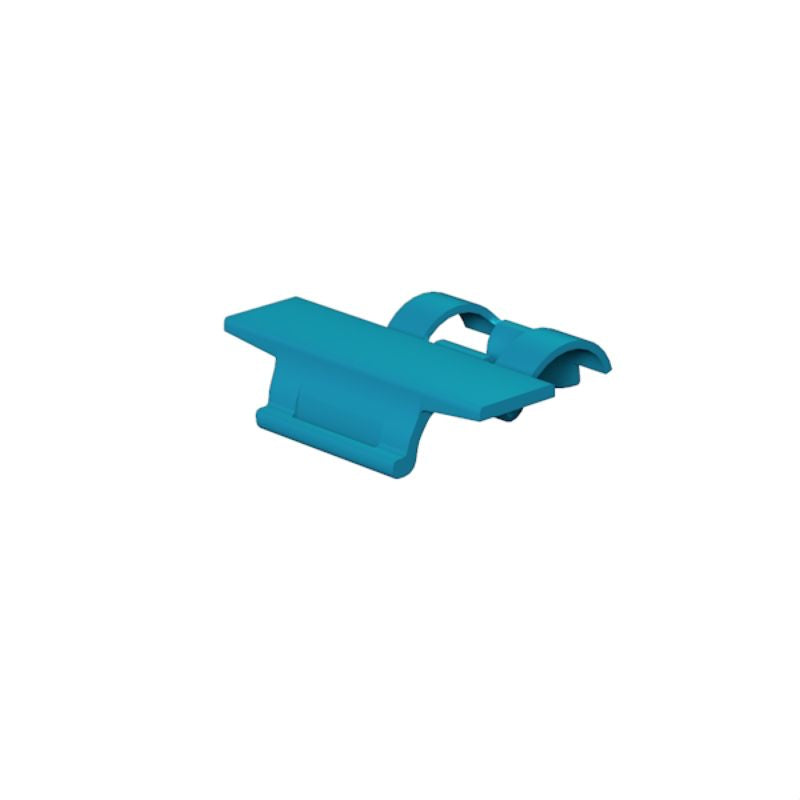

Introducing the SlimFix Clip model SFC 25/21 MC NE BL, engineered for secure cable management and marking This clip accommodates conductor cross-sections from 4 to 10 mm², with an outer diameter of 4 to 6 mm Crafted from robust Polyamide 66, it is presented in an eye-catching blue hue and adheres to RoHS guidelines Each unit comes in a MultiCard package that includes both conductor and cable markers, featuring a label area measuring 21 x 5.

8 mm Capable of withstanding temperatures ranging from -40°C to 100°C, this halogen-free clip is ideally suited for various machinery applications, ensuring reliable performance in diverse environments.

Features and Benefits:

    •Dimensions of 21 x 9.3 mm.

    •Compliant with RoHS without exemptions.

    •Contains no SVHC above 0.1 wt%.

    •UL 94 flammability rating of V-2.

    •Recommended for industries related to machinery.

Specifications:

 Depth 9.1 mm
 Height 21 mm
 Width 9.3 mm
 Operating temperature range -40...100 °C
 Basic material Polyamide 66
 Conductor cross-section, max 10 mm²
 Conductor cross-section, min 4 mm²
 Conductor O.D., max 6 mm
 Conductor O.D., min 4 mm
 Cross-section for connected wire 4 - 10 mm²
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Number of markers per packaging unit MultiCard
 Size of labelling field 21 x 5.8 mm
 Halogen No
 Product Carbon Footprint Cradle to gate: 0.003 kg CO2 eq.
 ETIM 6.0 EC001530
 ETIM 7.0 EC001530
 ETIM 8.0 EC001530
 ETIM 9.0 EC001530
 ETIM 10.0 EC001530
 ECLASS 9.0 27-40-04-01
 ECLASS 9.1 27-40-04-01
 ECLASS 10.0 27-40-04-01
 ECLASS 11.0 27-28-11-02
 ECLASS 12.0 27-28-11-02
 ECLASS 13.0 27-28-11-02
 ECLASS 14.0 27-28-11-02
 ECLASS 15.0 27-28-11-02
