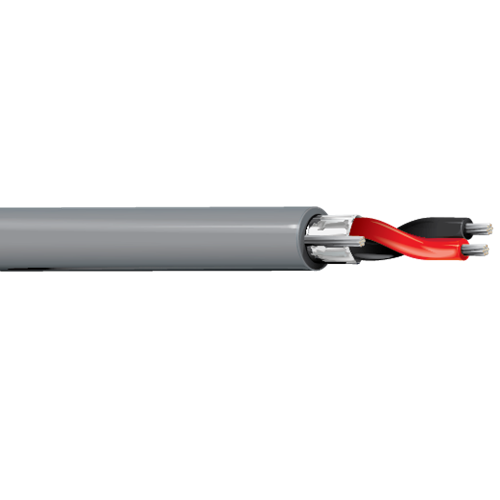

Belden 9451SB 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V Line Level Audio Cable

Description:

Line Level Audio Cable, 1 Pair 22 AWG (7 x 30) Tinned Copper, PP Insulation, Overall Beldfoil Shield, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Jacket:

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.033 in (0.84 mm)
• Nom. Diameter: 0.160 in (4.06 mm)
• Overall Cable Diameter (Nominal): 0.160 in (4.06 mm)

Standards:

• Voltage Rating: 300 V (CMG-LS)
• Operating Temperature: -30°C to +105°C
• Nom. Characteristic Impedance: 45 Ohm

Applications:

• Shipboard and offshore environments; Line level audio; Low voltage analog signals and control

Specifications:

• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9451SB
