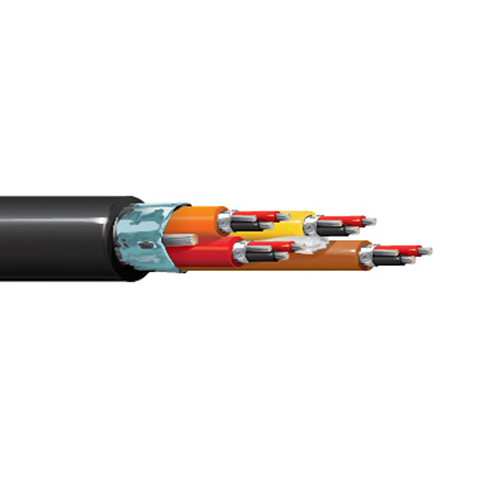

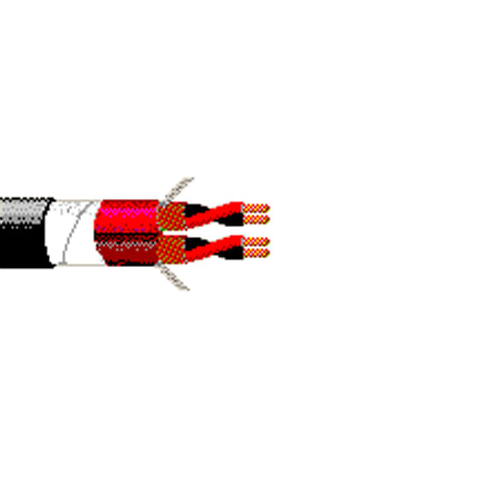

Belden 1924A 24 AWG 24 Pair 41x40 Stranding Bare Copper 300V Audio Snake Cable

Description:-

Audio Snake Cable, 24-24 AWG bare copper pairs, polyolefin insulation, individually shielded with double serve "French Braid", drain, numbered/color-coded PVC jackets, flexible PVC jacket.

Insulation:-

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.04 in (1.0 mm)

Inner Shield:-

• Shield Type: French Braid
• Material: Bare Copper (BC)
• Coverage [%]: 95%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.119 in (3.02 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.825 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 60 Ohm
• Operating Temperature Range: -20°C To +60°C

Applications:-

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:-

• Size (AWG): 24
• No. of Pairs: 24
• Stranding: 41x40
• Conductor Material: BC - Bare Copper
• Part Number: 1924A
