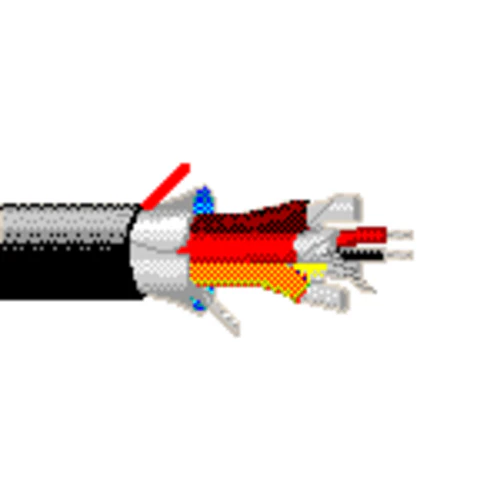

Belden 1510C 24 AWG 4 Pair 7x32 Stranding Tinned Copper 300V Audio Snake Cable

Description:

Audio Snake Cable, CM-Rated, 4-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil bonded to numbered/color-coded PVC jackets so both strip simulteaneously, overall Beldfoil shield, drain, flexible PVC jacket.

Insulation

• Material: PP - Polypropylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.04 in (1.0 mm)

Inner Shield:

• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+PVC)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.113 in (2.87 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.352 in
• Overall Cable Diameter (Nominal): 0.352 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +60°C

Applications:

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:

• Size (AWG): 24
• No. of Pair: 4
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1510C
