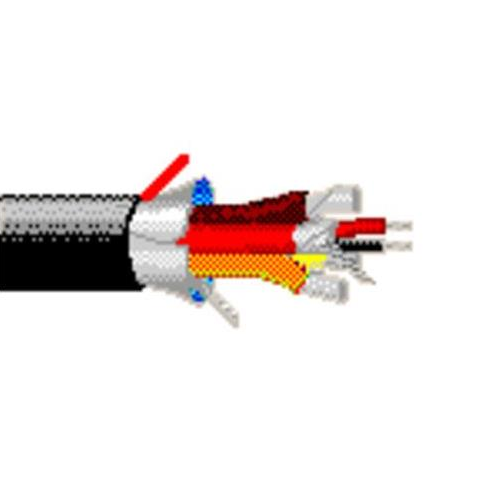

Belden 1410R 24 AWG 8 Pair 7x32 Stranding Tinned Copper 300V Audio Snake Cable

Description:

Audio Snake Cable, 8-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil bonded to numbered/color-coded PVC jackets so both strip simulteaneously, overall Beldfoil shield, drain, PVC jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.04 in (1.0 mm)

Inner Shield:

• Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Outer Shield:

• Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.113 in (2.87 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.446 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C To +75°C
• Nominal Characteristic Impedance: 50 Ohm

Applications:

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:

• Size (AWG): 24
• No. of Pair: 8
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1410R
