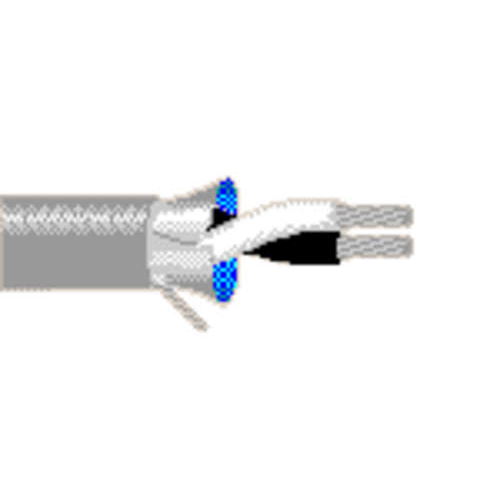

Belden 9180 26 AWG 1 Pair 7x34 Stranding Tinned Copper 300V Audio Cable

Description:-

Audio Cable, 110 Ohm, 26 AWG stranded (7x34) .018” TC conductors, Datalene insulation, twisted pair, Beldfoil shield (100% coverage), 26 AWG stranded TC drain wire, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Insulation Diameter: 0.049 in (1.2 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Diameter: 0.144 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 110 Ohm
• Operating Temperature Range: -40°C To +75°C

Applications:-

• Low Voltage analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level audio; Computer Communication; Panel Wiring

Specifications:-

• Size (AWG): 26
• No. of Pairs: 1
• Stranding: 7x34
• Conductor Material: TC - Tinned Copper
• Part Number: 9180
