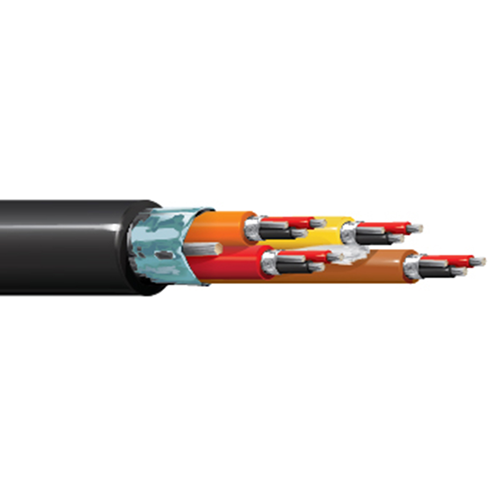

Belden 1513C 24 AWG 12 Pair 7x32 Stranding Tinned Copper 300V Audio Snake Cable

Description:

Audio Snake Cable, 12 Pair 24 AWG (7 x 32) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil Shield, PVC jacket, Ripcord, CM, Flexible.

Insulation

• Material: PP - Polypropylene
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.04 in (1.0 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (65x36) TC - Tinned Copper

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.113 in (2.87 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.561 in (14.2 mm)
• Overall Cable Diameter (Nominal): 0.561 in (14.2 mm)

Standards:

• Voltage Rating: 300 V (CM)
• Operating Temperature: -35°C To +75°C
• Nom. Characteristic Impedance: 50 Ohm

Applications:

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:

• Size (AWG): 24
• No. of Pair: 12
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1513C
