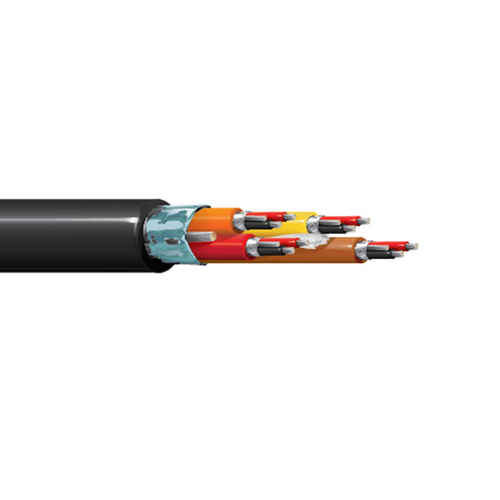

Belden 1817P 22 AWG 8 Pair 7x30 Stranding Tinned Copper 300V Audio Snake Cable

Description:-

Audio Snake Cable, 8 pair 22 AWG (7 x 30) Tinned Copper, FEP insulation, Individually Foil Shielded and PVDF jacketed, Overall PVDF Jacket, Ripcord, CMP.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.05 in (1.3 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Inner Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Diameter: 0.119 in (3.02 mm)

Outer Jacket:-

• Material: PVDF - Polyvinylidene Fluoride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.424 in (10.8 mm)
• Overall Cable Diameter (Nominal): 0.424 in (10.8 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -40°C to +150°C

Applications:-

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:-

• Size (AWG): 22
• No. of Pair: 8
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1817P
