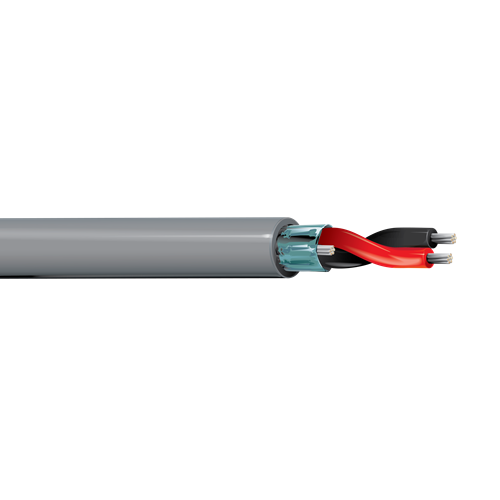

Belden 1508A 24 AWG 1 Pair 7x32 Stranding Tinned Copper 300V Audio Cable

Description:

Audio Cable, CM-Rated, 1-24 AWG stranded tinned copper pair with polyolefin insulation, Beldfoil shield, drain, PVC jacket.

Insulation

• Material: PP - Polypropylene 0
• Nom. Thickness: 0.008 in (0.20 mm)
• Nom. Insulation Diameter: 0.04 in mm

Outer Shield:

• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+PVC)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.024 in (0.61 mm)
• Nom. Diameter: 0.131 in
• Overall Cable Diameter (Nominal): 0.131 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +60°C

Applications:

• for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 24
• No. of Pair: 1
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1508A
