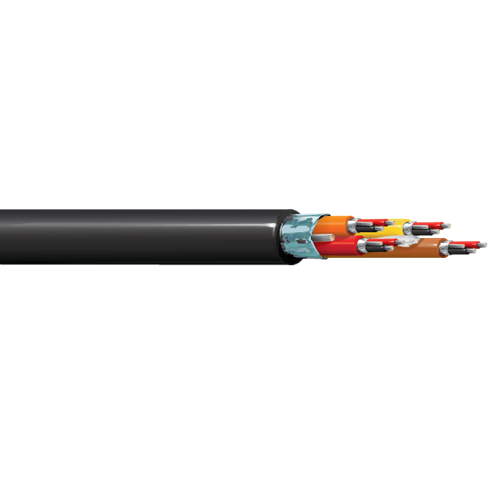

Belden 1814R 22 AWG 2 Pair 7x30 Stranding Tinned Copper 300V Audio Snake Cable

Description:

Audio Snake Cable, 2 Pair 22 AWG (7 x 30) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil Shield, PVC Jacket, Ripcord, CMR.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.05 in (1.3 mm)

Inner Shield:

• Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Shield:

• Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%
• Drainwire Type: 18 AWG (19x30) TC - Tinned Copper

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.133 in (3.38 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.330 in (8.38 mm)
• Overall Cable Diameter (Nominal): 0.330 in (8.38 mm)

Standards:

• Voltage Rating: 300 V (CMR)
• Operating Temperature: -20°C to +60°C
• Nominal Characteristic Impedance: 50 Ohm

Specifications:

• Size (AWG): 22
• No. of Pair: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1814R
