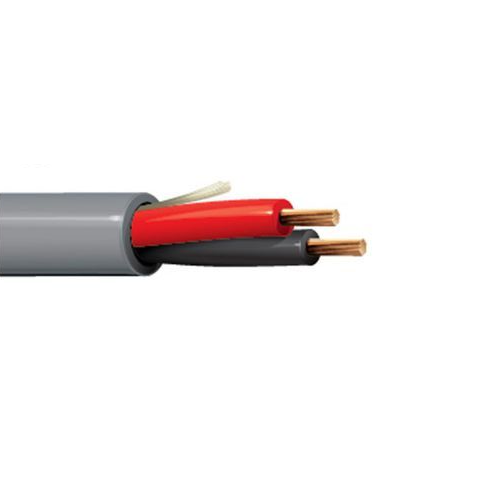

Belden 1314SB 14 AWG 2 Conductor 41x30 Stranding Tinned Copper 300V Speaker Cable

Description:-

Speaker Cable, 2 Conductor 14 AWG (41 x 30) Tinned Copper, PP insulation, LSZH jacket, Ripcord, CMG-LS-rated, Shipboard ABS Type Approved, Flexible.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.095 in (2.4 mm)

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.052 in (1.3 mm)
• Nom. Diameter: 0.294 in (7.47 mm)
• Overall Cable Diameter (Nominal): 0.294 in (7.47 mm)

Standards:-

• UL Voltage Rating: 300 V (CMG-LS)
• Operating Temperature Range: -20°C to +105°C

Applications:-

• Shipboard and offshore environments, Speaker; Low voltage analog signals and control

Specifications:-

• Size (AWG): 14
• No. of Conductor: 2
• Stranding: 41x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1314SB
