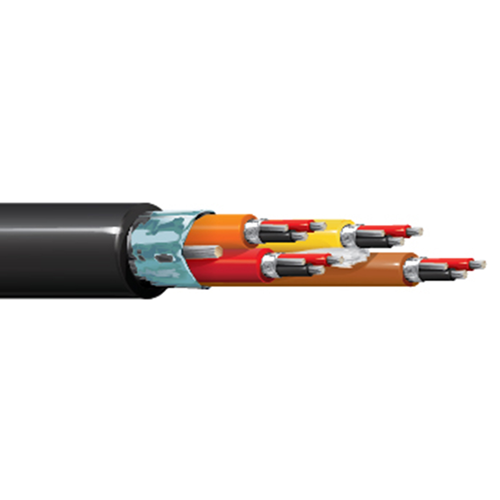

Belden 1819R 22 AWG 16 Pair 7x30 Stranding Tinned Copper 300V Audio Snake Cable

Description:

Audio Snake Cable, 16 Pair 22 AWG (7 x 30) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil Shield, PVC Jacket, Ripcord, CMR.

Insulation:

• Material: PP - Polypropylene
• Nom.Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.05 in (1.3 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (19x30) TC - Tinned Copper

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.133 in (3.38 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.074 in (1.9 mm)
• Nom. Diameter: 0.776 in (19.7 mm)
• Overall Cable Diameter (Nominal): 0.776 in (19.7 mm)

Standards:

• Voltage Rating: 300 V (CMR)
• Operating Temperature: -20°C to +60°C
• Nom. Characteristic Impedance: 50 Ohms

Applications:

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio.
