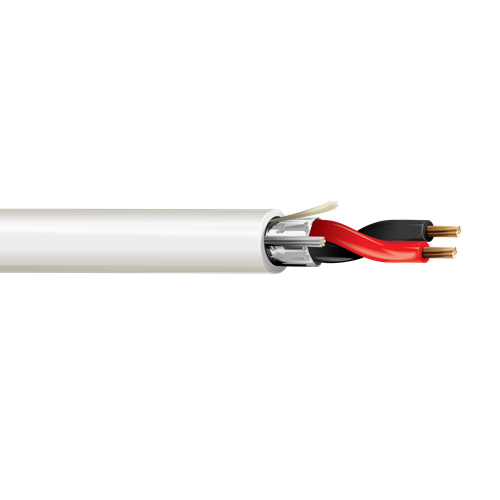

Belden 1266A 22 AWG 2 Conductor 7x30 Stranding Tinned Copper 300V Audio Cable

Description:

Audio Cable, CM-Rated, 2-22 AWG stranded tinned copper conductors with polypropylene insulation, Beldfoil shield, drain, PVC jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.0485 in (1.23 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.02 in (0.51 mm)
• Nom. Diameter: 0.143 in (3.63 mm)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C To +60°C
• Nom. Characteristic Impedance: 55 Ohm

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:

• Size (AWG): 22
• No. of Conductor: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1266A
