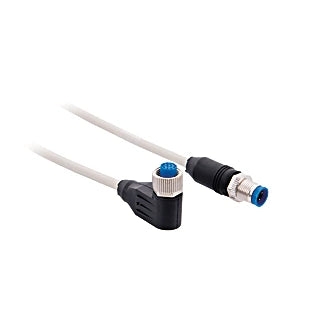

ZDCV004 - M12 Cable with 12-Pin Socket & 4-Pin Plug for Robots

SKU: SKU: ZDCV004 Download PDF

Variant:

ZDCV004 - M12 Cable with 12-Pin Socket & 4-Pin Plug for Robots

Now $273.00

~~BEFORE $0.00~~ Now $273.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 × 1 connection cable, featuring a 12-pin socket and a straight 4-pin plug Engineered for durability and flexibility, this screened cable is perfect for drag chain applications, making it an excellent choice for robotic systems It is readily available for purchase and can be conveniently added to your cart or request list.

Features and Benefits:

•Screened.

•Drag chain suitable.

•Suitable for robots.

Specifications:

Supply Voltage	≤ 30 V DC
Connection 1	Socket, angled
Connection mode 1	M12 × 1, 12-pin
Connection 2	Plug, straight
Connection mode 2	M12 × 1, 4-pin
Torque	M12: 0.6 Nm
Coding	A-coding
Cable Length	2 m
Outer diameter (d)	5 mm
Wire cross-section	0.25 mm²
Degree of Protection	IP67
Temperature range (fixed installation)	-40 ... 70 °C
Temperature range (moving application)	-20 ... 70 °C
Jacket color	gray
Cable Jacket Material	Plastic, PUR
Material Wire Insulation	Plastic, TPE
Material Sleeve Nut	Brass, nickel-plated
Screened	yes
Halogen-free	yes
Drag Chain Suitable	yes
Bending radius (fixed installation)	> 5 × d
Bending radius (used in motion)	> 7.5 × d
Bending cycles	≤ 2000000
Torsional stress	≤ 180°/m
