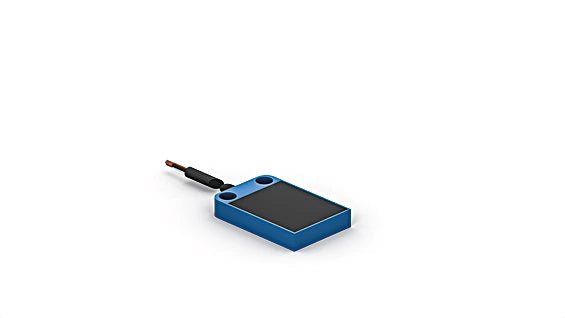

T1FL06VB - Reflex Sensor with Single Housing for Object Detection

SKU: SKU: T1FL06VB Download PDF

Select a Variant:

T1FL06VB - Reflex Sensor with Single Housing for Object Detection

SET THE QTY:

Now $213.00 Web pricing policy

~~BEFORE $0.00~~ Now $213.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience precision in detection with our innovative sensors, which feature both the transmitter and receiver within a single compact unit This advanced sensor assesses the light that is emitted and then reflects back from objects in its vicinity As soon as an object enters the predetermined range, the output activates Notably, brighter objects can be identified from a greater distance due to their ability to reflect more light compared to darker surfaces, making this sensor an efficient solution for various applications.

Features and Benefits:

•Integrated output.

•Especially suitable in applications where only minimal space is available.

Specifications:

Range	60 mm
Switching Hysteresis	< 15 %
Light Source	Infrared Light
Service Life (T = +25 °C)	100,000 h
Max. Ambient Light	10,000 Lux
Opening Angle	25 °
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 30 mA
Switching Frequency	2 kHz
Response Time	250 µs
Temperature Drift	< 10 %
Temperature Range	-25 ... 60 °C
Voltage Drop	< 2.5 V
Switching Output / Switching Current	100 mA
Residual Current Switching Output	< 50 µA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Protection Class	III
Housing Material	Plastic, ABS/GF
Degree of Protection	IP67
Connection	Cable; 3-wire
Cable Length	2 m
Cable Jacket Material	Plastic, PVC
Output PNP NO	yes
