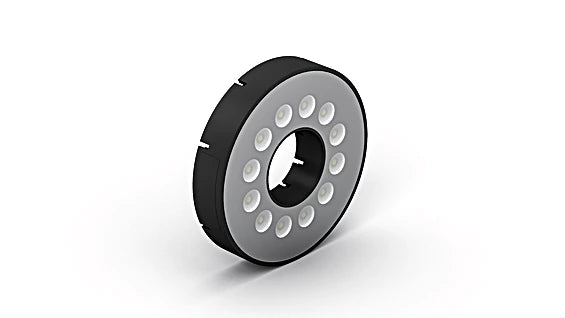

ZVZF100 - 50mm Wenglor Ring Light for Improved Image Quality

ZVZF100 - 50mm Wenglor Ring Light for Improved Image Quality

SKU: ZVZF100   Download PDF

Select a Variant:
  • ZVZF100 - 50mm Wenglor Ring Light for Improved Image Quality
Qty:
Now $1,176.00   Web pricing policy
BEFORE   $0.00 Now $1,176.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience exceptional lighting with the wenglor ring lights, designed to provide even illumination for various applications The innovative 360° annular floodlighting feature minimizes shadows and enhances image clarity These lights can be utilized in continuous mode, or seamlessly synced with your camera for flash mode operation Built with a robust IP67-rated housing, they are easy to integrate into existing setups alongside Smart Cameras or Machine Vision Cameras, offering versatility and paving the way for advanced system designs.

Features and Benefits:

    •Continuous mode or strobe mode synchronized with the camera.

    •Homogeneous and very bright illumination without shadows.

    •Can be mounted together with Smart Camera or Machine Vision Camera.

Specifications:

 Light Source: White Light
 Color temperature: 5,000 K
 Service Life (T = +25 °C): 100,000 h
 Risk Group (EN 62471): 2
 Opening Angle: 33 °
 Temperature Range: -30 ... 50 °C
 Storage temperature: -30 ... 60 °C
 Atmospheric humidity: < 80%, non-condensing
 Supply Voltage: 18 ... 30 V DC
 Current Consumption Continuous Mode (Ub = 24 V): < 700 mA
 Current consumption flash mode overdrive (operating voltage = 24 V): < 4,200 mA
 Flash duration (max.): 17 ... 30,000 µs
 Duty cycle (max.): < 0,2
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 Housing Material: Aluminum, anodised
 Degree of Protection: IP67
 UL Enclosure Type: 1
 Optic Cover: Plastic, PMMA
 Connection: M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1): 1,557.35 a
