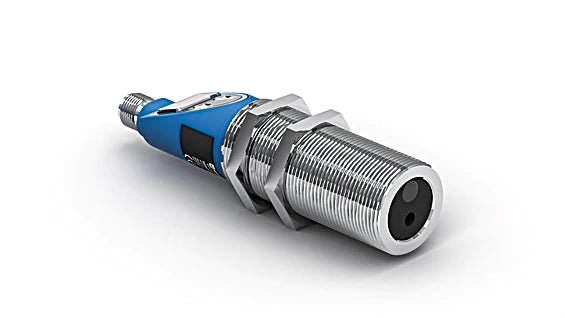

TIF352U0089 - Contactless Temperature Sensor -25 to 350 °C Display

TIF352U0089 - Contactless Temperature Sensor -25 to 350 °C Display

SKU: TIF352U0089   Download PDF

Select a Variant:
  • TIF352U0089 - Contactless Temperature Sensor -25 to 350 °C Display
Qty:
Now $8.00   Web pricing policy
BEFORE   $0.00 Now $8.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing an advanced temperature sensor with a spectral sensitivity range of 8 to 14 µm This device captures emitted radiation in this specific range and processes it to generate accurate output signals Capable of measuring temperatures between -25 °C and 350 °C, it features an easy-to-use 4-digit 7-segment display for straightforward adjustments and real-time temperature readings.

Features and Benefits:

    •Analog output.

    •Degree of emission adjustable or teachable from 0.1...1.

    •Integrated laser alignment aid.

    •Target performance-value comparison through 2 adjustable switching outputs.

Specifications:

 Temperature Measurement Range -25 ... 350 °C
 Measuring Range 375 °C
 Resolution 0.1 °C
 Spectral Sensitivity 8 ... 14 µm
 Linearity Deviation (-25 °C < Tobj ≤ 350 °C) 3.4 K
 Linearity Deviation (-20 °C < Tobj ≤ 200 °C) 0.7 K
 Reproducibility 2.5 K
 Switching Hysteresis 1 K
 Opening Angle 10 °
 Degree of Emission 0.1 ... 1
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 60 mA
 Switching Frequency 15 Hz
 Response Time 0.065 ... 30 s
 Temperature Drift (-20 °C < Tu ≤ 0 °C) < 0.63 °C/K
 Temperature Drift (0 °C < Tu ≤ 60 °C) < 0.14 °C/K
 Temperature Range -20 ... 60 °C
 Number of Switching Outputs 2
 Switching Output / Switching Current 200 mA
 Analog Output 0...10 V
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Interface RS-232
 Protection Class III
 Setting Method Menu
 Housing Material Stainless steel, V2A (1.4305 / 303), Plastic, ABS
 Degree of Protection IP67
 Connection M12 × 1; 8-pin
 MTTFd (EN ISO 13849-1) 712.08 a
 Output Analog Output
 Configurable as PNP/NPN yes
 Adjustable parameters 0...10 V, 4...20 mA
