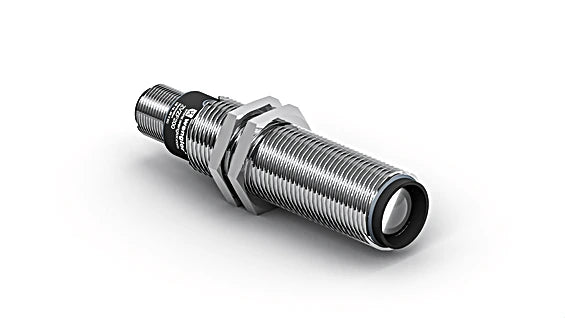

ZVZF201 - Compact M18 Red Spotlight for Precision Vision Applications

ZVZF201 - Compact M18 Red Spotlight for Precision Vision Applications

SKU: ZVZF201 Download PDF

Variant:
  • ZVZF201 - Compact M18 Red Spotlight for Precision Vision Applications
Now $287.00
BEFORE   $0.00 Now $287.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precise illumination with the wenglor spotlight red light, perfect for vision tasks requiring uniform lighting in confined spaces This versatile lighting solution can operate continuously or sync with your camera for strobe functionality Its compact M18 design makes it an efficient choice for areas where space is at a premium.

Features and Benefits:

    •Continuous mode or strobe mode synchronized with the camera.

    •Homogeneous illumination of small areas.

    •Compact M18 standard design with IP67 degree of protection.

Specifications:

 Light Source: Red Light
 Wavelength: 634 nm
 Service Life (T = +25 °C): 100,000 h
 Opening Angle: 30 °
 Temperature Range: -30 ... 50 °C
 Storage temperature: -30 ... 60 °C
 Atmospheric humidity: < 80%, non-condensing
 Supply Voltage: 18 ... 30 V DC
 Current consumption flash mode overdrive (operating voltage = 24 V): < 220 mA
 Current Consumption Continuous Mode (Ub = 24 V): < 100 mA
 Flash duration (max.): 17 ... 30,000 µs
 Duty cycle (max.): < 0,2
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 Housing Material: Brass, nickel-plated
 Optic Cover: Glass
 Degree of Protection: IP67
 UL Enclosure Type: 1
 Connection: M12 × 1; 5-pin
 Weight: 79 g
 MTTFd (EN ISO 13849-1): 2,494.3 a
