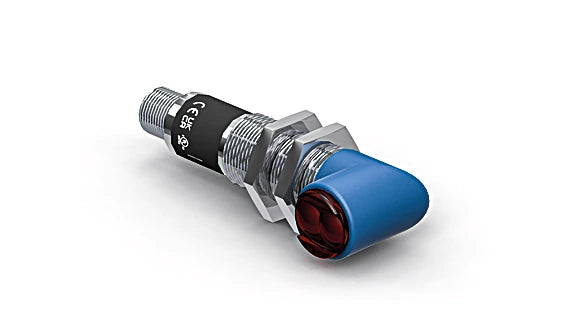

LW86PA3 - Durable Retro-Reflex Sensor with Stainless Steel Housing

LW86PA3 - Durable Retro-Reflex Sensor with Stainless Steel Housing

SKU: LW86PA3   Download PDF

Select a Variant:
  • LW86PA3 - Durable Retro-Reflex Sensor with Stainless Steel Housing
Qty:
Now $178.00   Web pricing policy
BEFORE   $0.00 Now $178.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience the reliability of the Retro-Reflex Sensor Universal, designed for versatile use across various industrial environments This sensor requires a reflector to operate and excels in detecting reflective objects using polarized light Crafted with a robust stainless steel housing, it is equipped with an adjustable switching distance feature for precise operation Utilizing a red light source and a built-in polarization filter, it enhances its sensing capabilities.

With a remarkable lifespan of 100,000 hours at a standard temperature of +25 °C, this sensor stands up to demanding conditions, making it an ideal solution for diverse sensing needs.

Features and Benefits:

    •Stainless steel housing.

    •Switching distance adjuster.

    •Reliable recognition of reflective objects through polarized light.

    •Service life of 100,000 hours at 25°C.

    •Designed for use in industrial environments.

Specifications:

 Range: 6,000 mm
 Reference Reflector: RQ100BA
 Switching Hysteresis: < 15 %
 Light Source: Red Light
 Polarization Filter: yes
 Max. Ambient Light: 10,000 Lux
 Opening Angle: 5 °
 Two-Lens Optic: yes
 Supply Voltage: 10 ... 30 V DC
 Current Consumption (Ub = 24 V): < 40 mA
 Switching Frequency: 1 kHz
 Response Time: 500 µs
 Temperature Drift: < 10 %
 Temperature Range: -10 ... 60 °C
 Voltage Drop: < 2.5 V
 Switching Output/ Switching Current: 200 mA
 Residual Current Switching Output: < 50 µA
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 Setting Method: Potentiometer
 Housing Material: Stainless steel, V2A (1.4305 / 303) and Plastic, PBT
 Full Encapsulation: yes
 Degree of Protection: IP67
 Connection: M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1): 2,987.86 a
 Output: PNP NC, PNP NO
 Adjustable parameters Circuit: NC, NC+NO, NO
