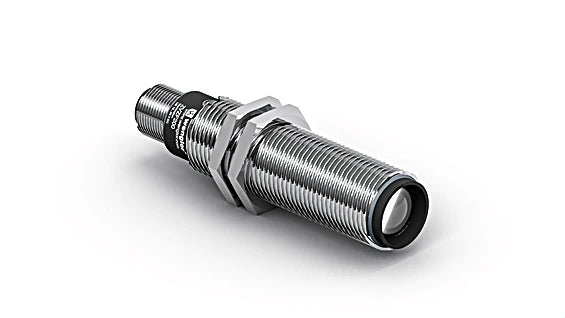

ZVZF202 - Compact M18 Infrared Spotlight for Vision Applications

ZVZF202 - Compact M18 Infrared Spotlight for Vision Applications

SKU: ZVZF202 Download PDF

Variant:
  • ZVZF202 - Compact M18 Infrared Spotlight for Vision Applications
Now $287.00
BEFORE   $0.00 Now $287.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience optimal illumination with the compact infrared wenglor spotlight, expertly designed for applications requiring focused lighting in limited spaces These spotlights can operate continuously or sync with cameras in strobe mode, ensuring versatile performance tailored to your specific vision needs The M18 format guarantees a space-efficient solution without compromising on effectiveness.

Features and Benefits:

    •Continuous mode or strobe mode synchronized with the camera.

    •Homogeneous illumination of small areas.

    •Compact M18 standard design with IP67 degree of protection.

Specifications:

 Light Source Infrared Light
 Wavelength 850 nm
 Service Life (T = +25 °C) 100,000 h
 Risk Group (EN 62471) 2
 Opening Angle 30 °
 Temperature Range -30 ... 50 °C
 Storage temperature -30 ... 60 °C
 Atmospheric humidity < 80%, non-condensing
 Supply Voltage 18 ... 30 V DC
 Current consumption flash mode overdrive (operating voltage = 24 V) < 350 mA
 Current Consumption Continuous Mode (Ub = 24 V) < 120 mA
 Flash duration (max.) 17 ... 30,000 µs
 Duty cycle (max.) < 0,2
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Brass, nickel-plated
 Optic Cover Glass
 Degree of Protection IP67
 UL Enclosure Type 1
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 2,518.85 a
