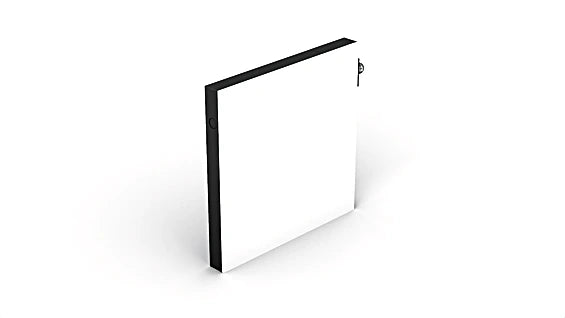

ZVZF302 - 188mm LED Backlight for Vision Applications, Rugged IP67 Design

ZVZF302 - 188mm LED Backlight for Vision Applications, Rugged IP67 Design

SKU: ZVZF302   Download PDF

Select a Variant:
  • ZVZF302 - 188mm LED Backlight for Vision Applications, Rugged IP67 Design
Qty:
Now $2,025.00   Web pricing policy
BEFORE   $0.00 Now $2,025.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Illuminate large areas effortlessly with wenglor backlights, perfect for vision applications These lights can function in continuous mode or be synchronized with a Machine Vision Camera for flash operation Their diffuse illumination is especially advantageous for both transmitted and incident light settings Ideal for compact systems, the backlights feature a durable IP67-rated housing that combines minimal thickness with a compact frame, all while providing an extensive illuminated surface area.

Features and Benefits:

    •Continuous mode or strobe mode synchronized with the camera.

    •Diffuse light for transmitted light and incident light applications.

    •Rugged housing (IP67) with minimal thickness and narrow edge.

Specifications:

 Light Source White Light
 Color temperature 5,000 K
 Service Life (T = +25 °C) 100,000 h
 Luminance (Continuous Mode) 7,400 cd/m²
 Luminance (Flash Mode) 31,000 cd/m²
 Atmospheric humidity < 80%, non-condensing
 Supply Voltage 18 ... 30 V DC
 Current consumption flash mode overdrive (operating voltage = 24 V) < 4,800 mA
 Current Consumption Continuous Mode (Ub = 24 V) < 850 mA
 Flash duration (max.) 17 ... 30,000 µs
 Duty cycle (max.) < 0,2
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Luminous Field 180 × 180 mm
 Housing Material Aluminum, anodised
 Optic Cover Plastic, PMMA
 Degree of Protection IP67
 UL Enclosure Type 1
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 89.81 a
