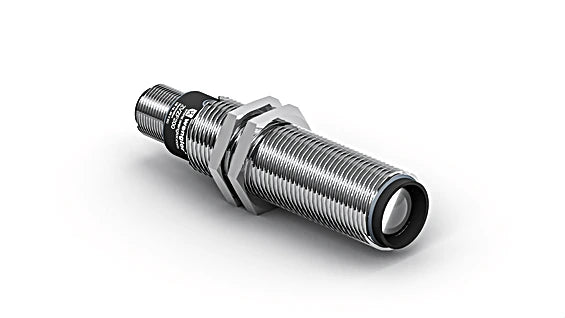

ZVZF200 - Compact 30° Wenglor Spotlight for Vision Applications

ZVZF200 - Compact 30° Wenglor Spotlight for Vision Applications

SKU: ZVZF200 Download PDF

Variant:
  • ZVZF200 - Compact 30° Wenglor Spotlight for Vision Applications
Now $287.00
BEFORE   $0.00 Now $287.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Illuminate your work with the Wenglor spotlight, designed to provide even lighting for small areas in vision applications This versatile light can function continuously or sync with a camera for strobe mode, making it ideal for tight spaces thanks to its compact M18 design Boasting a long lifespan, it features a 30-degree beam angle and is built with robust materials, ensuring it performs reliably across a range of environmental conditions.

Features and Benefits:

    •Continuous mode or strobe mode synchronized with the camera.

    •Homogeneous illumination of small areas.

    •Compact M18 standard design with IP67 degree of protection.

Specifications:

 Light Source: White Light
 Color temperature: 5,000 K
 Service Life (T = +25 °C): 100,000 h
 Risk Group (EN 62471): 2
 Opening Angle: 30 °
 Environmental conditions - Temperature Range: -30 ... 50 °C
 Storage temperature: -30 ... 60 °C
 Atmospheric humidity: < 80%, non-condensing
 Supply Voltage: 18 ... 30 V DC
 Current consumption flash mode overdrive (operating voltage = 24 V): < 250 mA
 Current Consumption Continuous Mode (Ub = 24 V): < 100 mA
 Flash duration (max.): 17 ... 30,000 µs
 Duty cycle (max.): < 0.2
 Short Circuit Protection: yes
 Reverse Polarity Protection: yes
 Overload Protection: yes
 Protection Class: III
 Housing Material: Brass, nickel-plated
 Optic Cover: Glass
 Degree of Protection: IP67
 UL Enclosure Type: 1
 Connection: M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1): 2,494.3 a
