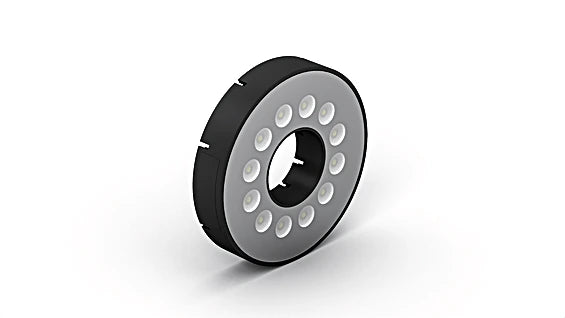

ZVZF101 - 50mm Red Ring Light for Enhanced Imaging and Shadow Reduction

ZVZF101 - 50mm Red Ring Light for Enhanced Imaging and Shadow Reduction

SKU: ZVZF101   Download PDF

Select a Variant:
  • ZVZF101 - 50mm Red Ring Light for Enhanced Imaging and Shadow Reduction
Qty:
Now $1,176.00   Web pricing policy
BEFORE   $0.00 Now $1,176.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Illuminate your space with the wenglor ring light featuring a 50 mm diameter With its brilliant red light, this accessory ensures an even distribution of illumination, significantly minimizing shadows and improving image clarity thanks to its 360° annular floodlight design It can function continuously or sync seamlessly with cameras in flash mode Built to last, the robust housing comes with an IP67 rating for water and dust resistance, and the standardized mounting options make it easy to integrate with Smart Cameras or Machine Vision Cameras, paving the way for innovative system applications.

Features and Benefits:

    •Continuous mode or strobe mode synchronized with the camera.

    •Homogeneous and very bright illumination without shadows.

    •Can be mounted together with Smart Camera or Machine Vision Camera.

Specifications:

 Light Source Red Light
 Wavelength 634 nm
 Service Life (T = +25 °C) 100,000 h
 Opening Angle 33 °
 Temperature Range -30 ... 50 °C
 Storage temperature -30 ... 60 °C
 Atmospheric humidity < 80%, non-condensing
 Supply Voltage 18 ... 30 V DC
 Current Consumption Continuous Mode (Ub = 24 V) < 760 mA
 Current consumption flash mode overdrive (operating voltage = 24 V) < 4,100 mA
 Flash duration (max.) 17 ... 30,000 µs
 Duty cycle (max.) < 0.2
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Aluminum, anodised
 Degree of Protection IP67
 UL Enclosure Type 1
 Optic Cover Plastic, PMMA
 Connection M12 × 1; 5-pin
 MTTFd (EN ISO 13849-1) 1,557.35 a
