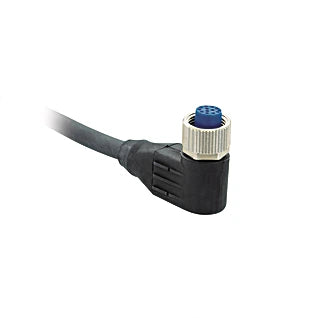

ZDCL006 - Flexible 12-Pin M12 Connection Line for Robots

SKU: SKU: ZDCL006 Download PDF

Select a Variant:

ZDCL006 - Flexible 12-Pin M12 Connection Line for Robots

SET THE QTY:

Now $157.00 Web pricing policy

~~BEFORE $0.00~~ Now $157.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Ensure a dependable connection with our M12 × 1 12-pin connection line, expertly crafted for a variety of applications Built with screened PUR material, this cable guarantees excellent durability and flexibility, making it ideal for both stationary and dynamic environments, including robotic systems.

Features and Benefits:

•Screened.

•PUR, angled.

•Drag chain suitable.

•Suitable for robots.

Specifications:

Supply Voltage	≤ 30 V DC
Connection 1	Socket, angled
Connection mode 1	M12 × 1, 12-pin
Connection 2	stripped
Torque	M12: 0,6 Nm
Coding	A-coding
Cable Length	10 m
Outer diameter (d)	6.5 mm
Wire cross-section	0.14 mm²
Degree of Protection	IP67
Temperature range (fixed installation)	-40 ... 85 °C
Temperature range (moving application)	-25 ... 85 °C
Cable Jacket Material	Plastic, PUR
Material Wire Insulation	Plastic, TPE
Material Sleeve Nut	Brass, nickel-plated
Screened	yes
Halogen-free	yes
Drag Chain Suitable	yes
Bending radius (fixed installation)	5 × d
Bending radius (used in motion)	10 × d
Travel speed (with 5 m horizontal travel distance)	≤ 3.3 m/s
Acceleration	≤ 5 m/s²
Bending cycles	5000000
Number of torsion cycles	2,000,000
Torsional stress	± 30°/m
Torsional speed (cycles/min)	35
