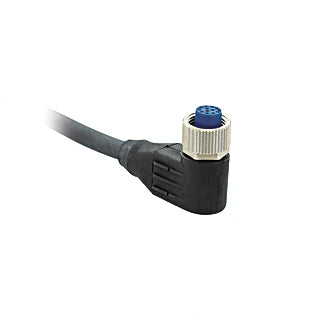

ZDCL005 - 12-Pin M12 Connection Line with Angled Socket and Halogen-Free Cable

ZDCL005 - 12-Pin M12 Connection Line with Angled Socket and Halogen-Free Cable

SKU: ZDCL005   Download PDF

Select a Variant:
  • ZDCL005 - 12-Pin M12 Connection Line with Angled Socket and Halogen-Free Cable
Qty:
Now $96.90   Web pricing policy
BEFORE   $0.00 Now $96.90 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the Connection Line M12 × 1; 12-pin, engineered to meet both electrical and mechanical performance requirements This connector includes an angled socket, making it ideal for dynamic applications such as robotic systems, and its design is compatible with drag chains Crafted with halogen-free materials, the cable is equipped with shielding to minimize electrical interference Capable of handling supply voltages of up to 30 V DC, it boasts a sturdy construction that performs reliably across a broad temperature spectrum, making it suitable for various industrial settings.

Features and Benefits:

    •Screened for enhanced performance.

    •Drag chain suitable for dynamic movements.

    •Halogen-free materials for environmental safety.

    •Robust with a high degree of protection IP67.

    •Suitable for robotic applications.

    •Robotic systems.

    •Industrial automation.

    •Machine connections in harsh environments.

Specifications:

 Supply Voltage: ≤ 30 V DC
 Connection 1: Socket, angled
 Connection mode 1: M12 × 1, 12-pin
 Connection 2: stripped
 Torque: M12: 0,6 Nm
 Coding: A-coding
 Cable Length: 5 m
 Outer diameter (d): 6.5 mm
 Wire cross-section: 0.14 mm²
 Degree of Protection: IP67
 Temperature range (fixed installation): -40 ... 85 °C
 Temperature range (moving application): -25 ... 85 °C
 Cable Jacket Material: Plastic, PUR
 Material Wire Insulation: Plastic, TPE
 Material Sleeve Nut: Brass, nickel-plated
 Bending radius (fixed installation): 5 × d
 Bending radius (used in motion): 10 × d
 Travel speed (with 5 m horizontal travel distance): ≤ 3.3 m/s
 Acceleration: ≤ 5 m/s²
 Bending cycles: 5000000
 Number of torsion cycles: 2,000,000
 Torsional stress: ± 30°/m
 Torsional speed (cycles/min): 35
