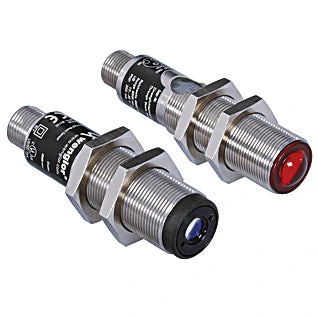

ZD600PCT3 - Industrial Through-Beam Sensor for Reliable Functionality

SKU: SKU: ZD600PCT3 Download PDF

Select a Variant:

ZD600PCT3 - Industrial Through-Beam Sensor for Reliable Functionality

SET THE QTY:

Now $279.00 Web pricing policy

~~BEFORE $0.00~~ Now $279.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the reliability of these through-beam sensors, perfectly engineered for industrial applications With an extensive working range, they excel in even the most contaminated environments Additionally, a test input feature allows for easy verification of proper operation, ensuring dependable performance when you need it most.

Features and Benefits:

•Smallest recognizable part: 0.05 mm.

•Range: 60 m.

•Teach-in, external teach-in.

Specifications:

Range	60,000 mm
Smallest Recognizable Part	50 µm
Switching Hysteresis	< 15 %
Light Source	Laser (red)
Service Life (T = +25 °C)	100,000 h
Laser Class (EN 60825-1)	2
Max. Ambient Light	10,000 Lux
Opening Angle	12 °
Sensor Type	Receiver
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 15 mA
Switching Frequency	5 kHz
Response Time	100 µs
On-/Off-Delay (RS-232)	0 ... 5 s
Temperature Drift	< 10 %
Temperature Range	-25 ... 60 °C
Voltage Drop	< 2.5 V
Switching Current	200 mA
Short Circuit Protection	yes
Reverse Polarity Protection	yes
Overload Protection	yes
Teach Mode	NT, MT
Protection Class	III
Setting Method	Teach-In
Housing Material	Stainless steel, V2A (1.4305 / 303)
Full Encapsulation	yes
Degree of Protection	IP67
Connection	M12 × 1; 4-pin
MTTFd (EN ISO 13849-1)	2,612.16 a
Output PNP NC	yes
RS-232 with Adapterbox	yes
Adjustable parameters Circuit	NC
