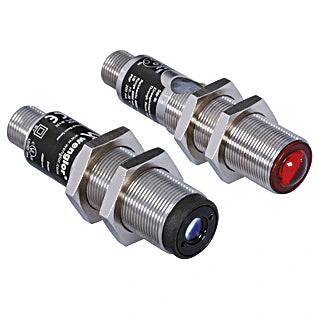

ZD6003 - Industrial Through-Beam Sensor with Test Input for Reliable Function

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Optimize your industrial processes with these efficient through-beam sensors, designed specifically for challenging environments Offering an impressive operational range, these devices ensure reliable performance even in heavily contaminated settings You'll appreciate the convenient test input feature, which allows for easy functionality checks.

Features and Benefits:

•Adjustable focus.

•Range: 60 m.

•Light Source: Laser (red).

•Wavelength: 655 nm.

•Service Life (T = +25 °C): 100,000 h.

•Laser Class (EN 60825-1): 2.

•Beam Divergence: 0.5 mrad.

•Supply Voltage: 10 ... 30 V DC.

•Current Consumption (Ub = 24 V): < 15 mA.

•Temperature Drift: < 10 %.

•Temperature Range: -25 ... 60 °C.

•Reverse Polarity Protection: yes.

•Protection Class: III.

•Housing Material: Stainless steel, V2A (1.4305 / 303).

•Full Encapsulation: yes.

•Degree of Protection: IP67.

•Connection: M12 × 1; 4-pin.

Specifications:
