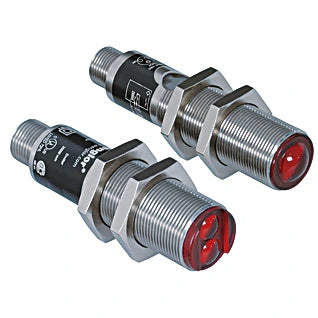

ZD200PCVT3 - Reliable Through-Beam Sensor for Industrial Use

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience unmatched reliability with our through-beam sensors, specifically engineered for industrial applications With their extensive operational range, these sensors perform optimally even in highly contaminated environments You can easily verify their functionality using a dedicated test input, ensuring that they meet your needs consistently.

Features and Benefits:

•Smallest recognizable part: 0.25 mm.

•Teach-in functionality.

•Time delay capability.

•Large working range of 20,000 mm.

•Optical data includes smallest recognizable part of 250 µm.

•Laser light source (red) with a service life of 100,000 hours.

•Light source classified in Laser Class 2.

•Max ambient light tolerance of 10,000 Lux.

•Electrical specifications: operates at 10-30 V DC.

•Low current consumption (< 15 mA at 24 V).

•Responsive switching frequency of 3 kHz.

•Fast response time of 166 µs.

•Temperature range from -25 to 60 °C.

•Full encapsulation with housing material of stainless steel.

•Degree of protection IP67.
