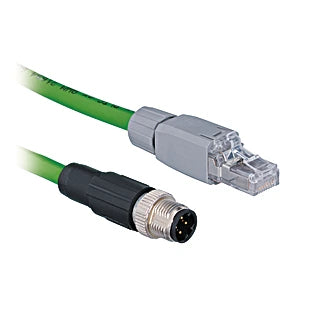

ZAV51R602 - 10m M12 × 1 to RJ45 Data Cable, 4-pin D-coded

SKU: SKU: ZAV51R602 Download PDF

Select a Variant:

ZAV51R602 - 10m M12 × 1 to RJ45 Data Cable, 4-pin D-coded

SET THE QTY:

Now $1.40 Web pricing policy

~~BEFORE $0.00~~ Now $1.40 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Enhance your connectivity with this versatile connection cable, featuring a 4-pin D-coded M12 × 1 connector on one end and a robust RJ45 8-pin connector on the opposite end Measuring 10 meters in length, this cable is engineered for consistent and reliable data transmission Its durable build makes it particularly well-suited for use in drag chains Plus, it's constructed from halogen-free materials and includes screening, ensuring safe and effective performance across various environments.

Features and Benefits:

•Drag chain suitable.

•Screened.

•Halogen-free.

•Mechanical construction designed for high durability.

Specifications:

Connection 1:	Plug, straight
Connection mode 1:	M12 × 1, 4-pin, D-cod.
Connection 2:	Plug, straight
Connection mode 2:	RJ45, 8-pin
Torque:	M12: 0.6 Nm
Coding:	D-coding
Cable Length:	10 m
Outer diameter (d):	6.5 mm
Wire cross-section:	0.34 mm²
Degree of Protection:	IP67
Temperature Range:	-10 ... 60 °C
Cable Jacket Material:	Plastic, PUR
Material Wire Insulation:	Plastic, PO
Material Sleeve Nut:	Zinc diecasting
Category:	CAT 5
Bending radius (fixed installation):	5 × d
Bending radius (used in motion):	10 × d
Travel speed (with 5 m horizontal travel distance):	4 m/s
Acceleration:	4 m/s²
Bending cycles:	3000000
