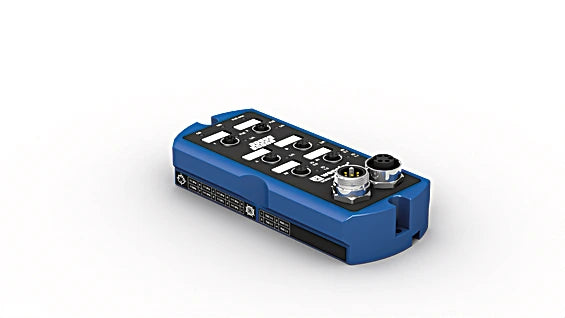

ZAC50PN02 - 4-Port Industrial Ethernet Switch with PoE Functions

ZAC50PN02 - 4-Port Industrial Ethernet Switch with PoE Functions

SKU: ZAC50PN02 Download PDF

Variant:
  • ZAC50PN02 - 4-Port Industrial Ethernet Switch with PoE Functions
Now $1,206.00
BEFORE   $0.00 Now $1,206.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Effortlessly connect up to four Industrial Ethernet devices with this versatile switch Equipped with two PoE-enabled ports, it provides necessary power to your connected equipment, enhancing functionality Additionally, it features two digital I/O ports that allow the integration of up to four PNP sensors and actuators This switch is engineered for easy connectivity in Industrial Ethernet settings, delivering strong performance and reliable operation.

Features and Benefits:

    •2 digital I/O ports.

    •4 Industrial Ethernet ports.

    •2 PoE-capable ports.

    •High protection class IP67.

    •Rugged aluminum housing.

Specifications:

 Supply Voltage 18 ... 32 V
 Power consumption of device max. 0.25 A
 Power consumption of system max. 2 A
 Max. PoE Capacity 25 W
 Max. Switching Current 0.6 A
 max. total current of the digital I/O ports 1 A
 Voltage Drop < 2.5 V
 Temperature Range -25 ... 60 °C
 Short Circuit Protection yes
 Overload Protection yes
 Reverse Polarity Protection yes
 PoE Ports 2
 Number of digital I/O ports 2
 Supported PoE Standard IEEE802.3af, IEEE802.at
 Supported PoE Classes Class 0, 1, 2, 3
 Transmission rate 10/100 Mbit/s
 Transmission Mode Full/Half Duplex
 Managed Switch yes
 Switch Mode Store & Forward
 VLAN Prioritization yes
 Auto-Crossover yes
 Auto-Negotiating yes
 Auto-Polarity yes
 Interface PROFINET
 Protection Class III
 Material Aluminum
 Degree of Protection IP67
 Type of Connection Power 2 × 7/8", 5-pin
 Type of Connection Industrial Ethernet Ports 2 × M12; 4-pin
 Type of Connection PoE Ports 2 × M12; 8-pin
 Type of connection digital I/O ports 2 × M12; 4-pin
