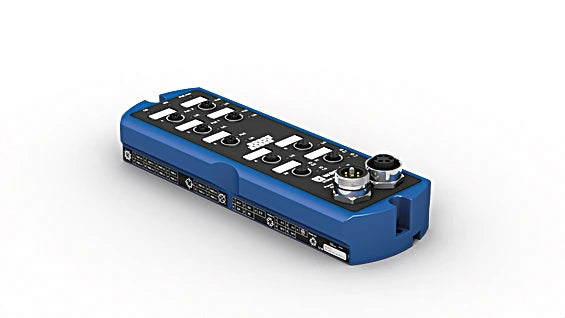

ZAC50PN01 - Industrial Ethernet Switch with 5 PoE Ports & IP67 Protection

ZAC50PN01 - Industrial Ethernet Switch with 5 PoE Ports & IP67 Protection

SKU: ZAC50PN01 Download PDF

Variant:
  • ZAC50PN01 - Industrial Ethernet Switch with 5 PoE Ports & IP67 Protection
Now $1,589.00
BEFORE   $0.00 Now $1,589.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This versatile switch enables easy connectivity for up to seven Industrial Ethernet devices With five ports equipped for Power over Ethernet (PoE), it efficiently delivers power to connected equipment Additionally, users can hook up to four PNP sensors and actuators using two dedicated digital I/O ports Engineered to withstand tough environments, the switch boasts an impressive IP67 protection rating and is housed in a robust aluminum casing, making it ideal for a range of industrial settings.

Features and Benefits:

    •2 digital I/O ports.

    •7 Industrial Ethernet ports.

    •5 PoE-capable ports.

    •High protection class IP67.

    •Rugged aluminum housing.

    •Managed Switch with VLAN prioritization and Auto-Negotiating.

Specifications:

 Supply Voltage 18 ... 32 V
 Power consumption of device max 0.3 A
 Power consumption of system max 2.2 A
 Max. PoE Capacity 30 W
 Max. Switching Current 0.6 A
 Max. total current of the digital I/O ports 1 A
 Voltage Drop < 2.5 V
 Temperature Range -25 ... 60 °C
 Short Circuit Protection yes
 Overload Protection yes
 Reverse Polarity Protection yes
 Supported PoE Standard IEEE802.3af, IEEE802.at
 Supported PoE Classes Class 0, 1, 2, 3
 Transmission rate 10/100 Mbit/s
 Transmission Mode Full/Half Duplex
 Switch Mode Store & Forward
 Interface PROFINET
 Protection Class III
 Material Aluminum
 Degree of Protection IP67
 Type of Connection Power 2 × 7/8", 5-pin
 Type of Connection Industrial Ethernet Ports 2 × M12; 4-pin
 Type of Connection PoE Ports 5 × M12; 8-pin
 Type of connection digital I/O ports 2 × M12; 4-pin
 Web server yes
 Output PROFINET-I/O, CC-B yes
 Power Source Equipment for PoE yes
