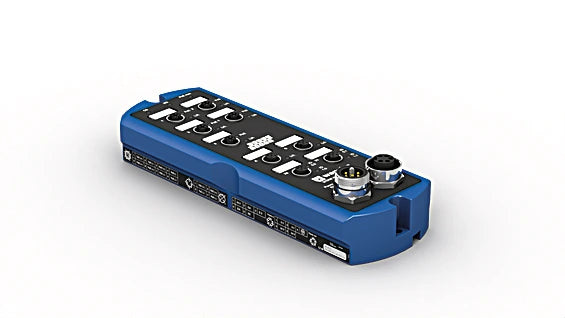

ZAC50EN01 - 5-Port PoE Industrial Ethernet Switch for 7 Devices

ZAC50EN01 - 5-Port PoE Industrial Ethernet Switch for 7 Devices

SKU: ZAC50EN01 Download PDF

Variant:
  • ZAC50EN01 - 5-Port PoE Industrial Ethernet Switch for 7 Devices
Now $1,522.00
BEFORE   $0.00 Now $1,522.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Effortlessly connect up to seven Industrial Ethernet devices with this versatile switch Featuring five ports that support Power over Ethernet (PoE), it efficiently delivers power to your connected products Additionally, there are two digital I/O ports available for integrating up to four PNP sensors and actuators, enhancing your system's functionality Perfect for expanding your network capabilities.

Features and Benefits:

    •2 digital I/O ports.

    •5 PoE-capable ports.

    •7 Industrial Ethernet ports.

    •High protection class IP67.

    •Rugged aluminium housing.

Specifications:

 Supply Voltage 18 ... 32 V
 Power consumption of device max. 0.3 A
 Power consumption of system max. 2.2 A
 Max. PoE Capacity 30 W
 Max. Switching Current 0.6 A
 max. total current of the digital I/O ports 1 A
 Switching Output Voltage Drop < 2.5 V
 Temperature Range -25 ... 60 °C
 Short Circuit Protection yes
 Overload Protection yes
 Reverse Polarity Protection yes
 PoE Ports 5
 Number of digital I/O ports 2
 Supported PoE Standard IEEE802.3af, IEEE802.at
 Supported PoE Classes Class 0, 1, 2, 3
 Transmission rate 10/100 Mbit/s
 Transmission Mode Full/Half Duplex
 Switch Mode Store & Forward
 VLAN Prioritization yes
 Auto-Crossover yes
 Auto-Negotiating yes
 Auto-Polarity yes
 Interface EtherNet/IP
 Protection Class III
 Material Aluminum
 Degree of Protection IP67
 Type of Connection Power 2 × 7/8", 5-pin
 Type of Connection Industrial Ethernet Ports 2 × M12; 4-pin
 Type of Connection PoE Ports 5 × M12; 8-pin
 Type of connection digital I/O ports 2 × M12; 4-pin
