Description:

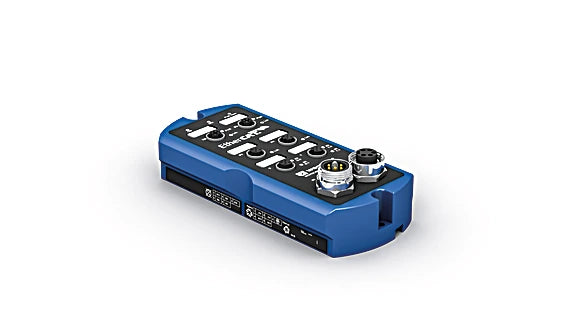

Simplify your industrial connectivity with this junction that facilitates the connection of up to four Industrial Ethernet devices It features two Power over Ethernet (PoE) ports, providing essential power to your connected equipment Additionally, connect up to four PNP sensors and actuators through two digital I/O ports for enhanced functionality This versatile junction is designed for efficiency and ease of use in various industrial applications.

Features and Benefits:

    •2 digital I/O ports.

    •2 PoE-capable ports.

    •4 Industrial Ethernet ports.

    •High protection class IP67.

    •Rugged aluminum housing.

Specifications:

 Supply Voltage 18 ... 32 V
 Power consumption of device max 0.25 A
 Power consumption of system max 2 A
 Max. PoE Capacity 25 W
 Max. Switching Current 0.6 A
 max. total current of the digital I/O ports 1 A
 Switching Output Voltage Drop < 2.5 V
 Temperature Range -25 ... 60 °C
 Short Circuit Protection yes
 Overload Protection yes
 Reverse Polarity Protection yes
 PoE Ports 2
 Number of digital I/O ports 2
 Supported PoE Standard IEEE802.3af, IEEE802.at
 Supported PoE Classes Class 0, 1, 2, 3
 Transmission rate 100 Mbit/s
 Transmission Mode Full Duplex
 Auto-Crossover yes
 Auto-Negotiating yes
 Auto-Polarity yes
 Interface EtherCAT
 Protection Class III
 Material Aluminum
 Degree of Protection IP67
 Type of Connection Power 2 × 7/8", 5-pin
 Type of Connection Industrial Ethernet Ports 2 × M12; 4-pin
 Type of Connection PoE Ports 2 × M12; 8-pin
 Type of connection digital I/O ports 2 × M12; 4-pin
 Weight 1,130 g
 Web server yes
 EoE (Ethernet over EtherCAT) yes
 Output EtherCAT yes
 Power Source Equipment for PoE yes
