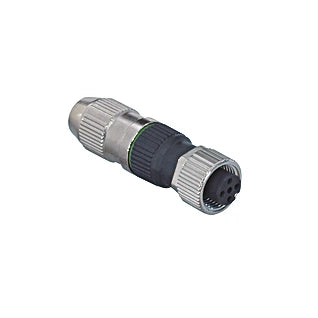

ZAB02NN01 - M12 × 1 4-Pin IDC Connection Socket, Straight Design

ZAB02NN01 - M12 × 1 4-Pin IDC Connection Socket, Straight Design

SKU: ZAB02NN01   Download PDF

Select a Variant:
  • ZAB02NN01 - M12 × 1 4-Pin IDC Connection Socket, Straight Design
Qty:
Now $20.20   Web pricing policy
BEFORE   $0.00 Now $20.20 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the M12 × 1 Connection Socket, featuring a reliable 4-pin design that utilizes insulation displacement technology (IDC) for superior performance This product comes with a detailed mechanical data outline, highlighting essential information such as torque settings, coding style, and precise dimensions, making it an excellent choice for a wide range of applications that demand strong connectivity.

Features and Benefits:

    •Insulation displacement technology (IDC).

    •Socket M12 × 1, straight.

    •Degree of Protection: IP67.

    •Temperature Range: -25 ... 85 °C.

Specifications:

 Connection 1 Socket, straight
 Connection mode 1 M12 × 1, 4-pin
 Torque 0.6 Nm
 Coding A-coding
 Outer diameter (d) 4 ... 5.1 mm
 Wire cross-section 0.25 ... 0.5 mm²
 Assembling Insulation displacement connector (IDC)
 Material Sleeve Nut Zinc, nickel-plated
