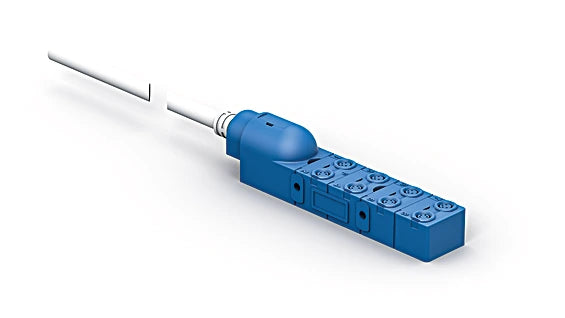

ZAA07R502 - 8-Port M8 Connection Box, IP67 Rated for Reliable Connectivity

SKU: SKU: ZAA07R502 Download PDF

Variant:

ZAA07R502 - 8-Port M8 Connection Box, IP67 Rated for Reliable Connectivity

Now $117.00

~~BEFORE $0.00~~ Now $117.00

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with this M8 × 1 connection box featuring a robust 4-pin configuration and 8 ports for seamless connections Designed with a high protection rating of IP67, it ensures reliable performance in various environments, making it a practical choice for your connectivity needs.

Features and Benefits:

•High protection class IP67.

•LED display for visual status.

•Halogen-free materials.

•Suitable for drag chain applications.

•Bending radius designed for both fixed installation and motion.

Specifications:

Supply Voltage	18 ... 30.2 V
Connection 1	Socket, 8 ports
Connection mode 1	M8 × 1, 4-pin
Torque	M8: 0,4 Nm +0,1 Nm
Cable Length	5 m
Outer diameter (d)	9.6 mm
Wire cross-section	0.34 / 0.75 mm²
Degree of Protection	IP67
Temperature Range	-20 ... 70 °C
Housing Material	Plastic, TPU
Cable Jacket Material	Plastic, PUR
Material Wire Insulation	PVC
Bending radius (fixed installation)	12 × d
Bending radius (used in motion)	12 × d
Travel speed (with 5 m horizontal travel distance)	2 m/s
Acceleration	5 m/s²
Bending cycles	> 2000000
