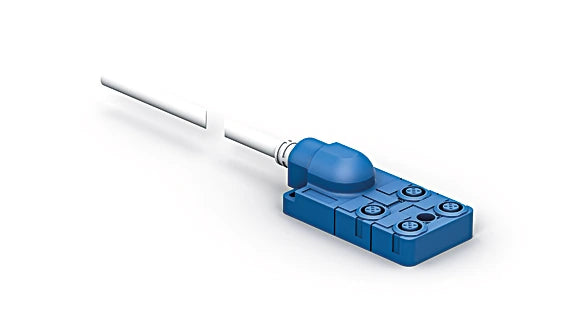

ZAA02R601 - IP67 Rated 4-Port M12 Connection Box for Versatile Applications

SKU: SKU: ZAA02R601 Download PDF

Select a Variant:

ZAA02R601 - IP67 Rated 4-Port M12 Connection Box for Versatile Applications

SET THE QTY:

Now $97.90 Web pricing policy

~~BEFORE $0.00~~ Now $97.90 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Ensure a trustworthy connection with the M12 × 1 Connection Box, featuring 4 pins and 4 ports, engineered for diverse applications This robust unit boasts an IP67 protection rating, making it suitable for various environments It operates effectively within a voltage range of 18 to 302 V and can endure temperatures from -20 to 70 °C The cabling is designed for lengths of up to 10 meters and features an 8.

1 mm outer diameter, combining flexibility with durability for all your connectivity needs.

Features and Benefits:

•High protection class IP67.

•LED display for easy monitoring.

•Torquing capability at 0.6 Nm +0.1 Nm.

•Halogen-free materials for environmental safety.

•Suitable for fixed and motion applications with drag chain capability.

Specifications:

Supply Voltage	18 ... 30.2 V
Connection 1	Socket, 4 ports
Connection mode 1	M12 × 1, 4-pin
Torque	M12: 0.6 Nm +0.1 Nm
Coding	A-coding
Cable Length	10 m
Outer diameter (d)	8.1 mm
Wire cross-section	0.34 / 0.75 mm²
Degree of Protection	IP67
Temperature Range	-20 ... 70 °C
Housing Material	Plastic, TPU
Cable Jacket Material	Plastic, PUR
Material Wire Insulation	PVC
Drag Chain Suitable	yes
Bending radius (fixed installation)	12 × d
Bending radius (used in motion)	12 × d
Travel speed (with 5 m horizontal travel distance)	2 m/s
Acceleration	5 m/s²
Bending cycles	> 2000000
