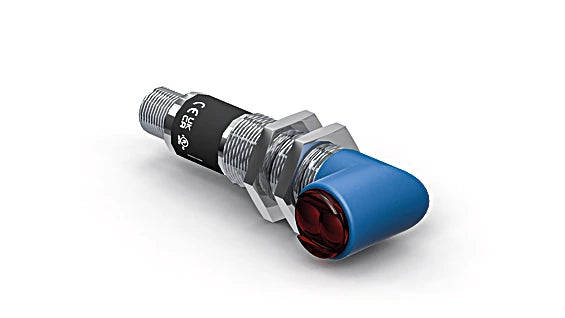

YW24PA3 - Advanced Reflex Sensor for Reliable Distance Detection

YW24PA3 - Advanced Reflex Sensor for Reliable Distance Detection

SKU: YW24PA3 Download PDF

Variant:
  • YW24PA3 - Advanced Reflex Sensor for Reliable Distance Detection
Now $3.50
BEFORE   $0.00 Now $3.50
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing advanced distance sensors that utilize angle measurements for precise detection These sensors excel at identifying objects, regardless of the background they are set against Remarkably, the switching performance remains unaffected by the object's color, shape, or surface features Perfect for a variety of applications, these sensors offer reliable performance in diverse environments.

Features and Benefits:

    •Stainless steel housing.

    •Spot diameter: 0.5 mm.

    •Switching frequency: 1.3 kHz.

    •Service Life (T = +25 °C): 100,000 h.

    •Laser Class (EN 60825-1): 2.

    •Max. Ambient Light: 10,000 Lux.

    •Full Encapsulation: yes.

    •Degree of Protection: IP67.

    •Short Circuit Protection: yes.

    •Reverse Polarity Protection: yes.

    •Overload Protection: yes.

Specifications:

 Optical Data - Range 150 mm
 Optical Data - Setting Range 35 ... 150 mm
 Optical Data - Switching Hysteresis < 5 %
 Optical Data - Light Source Laser (red)
 Optical Data - Wavelength 655 nm
 Electrical Data - Supply Voltage 10 ... 30 V DC
 Electrical Data - Current Consumption (Ub = 24 V) < 25 mA
 Electrical Data - Switching Frequency 1,300 Hz
 Electrical Data - Response Time 385 µs
 Electrical Data - Temperature Drift < 5 %
 Electrical Data - Temperature Range -25 ... 60 °C
 Electrical Data - Voltage Drop < 2.5 V
 Electrical Data - PNP Switching Output / Switching Current 200 mA
 Mechanical Data - Setting Method Potentiometer
 Mechanical Data - Housing Material Stainless steel, V2A (1.4305 / 303), Plastic, PBT
 Connection - M12 × 1; 4-pin
 FDA Accession Number 0820356-001
