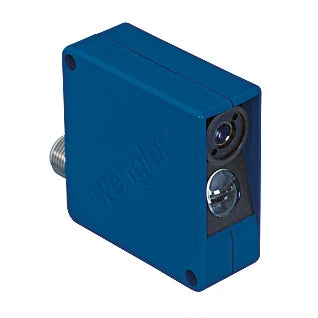

YP11VAH3ANZ - High-Speed Contrast Recognition Sensor

SKU: SKU: YP11VAH3ANZ Download PDF

Variant:

YP11VAH3ANZ - High-Speed Contrast Recognition Sensor

Now $6.50

~~BEFORE $0.00~~ Now $6.50

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience exceptional performance with these sensors, expertly designed for rapid detection of contrast differences Ideal for applications requiring high-speed recognition, they are tailored to enhance efficiency and accuracy in identifying variations.

Features and Benefits:

•Switching frequency: 20 kHz.

•Adjustable time delay.

•Light spot can be focused.

Specifications:

Range:	100 mm
Setting Range:	60 ... 100 mm
Switching Hysteresis:	< 50 µm
Light Source:	Laser (red)
Wavelength:	660 nm
Service Life:	100,000 h
Laser Class:	2
Max. Ambient Light:	10,000 Lux
Light Spot Diameter:	0.8 mm
Supply Voltage:	10 ... 30 V DC
Current Consumption:	< 30 mA
Response Time:	25 µs
On-Delay:	0 ... 200 ms
Temperature Drift:	< 1 %
Temperature Range:	-10 ... 60 °C
Switching Output Voltage Drop:	< 2.5 V
Switching Output Switching Current:	200 mA
Short Circuit Protection:	yes
Reverse Polarity Protection:	yes
Overload Protection:	yes
Protection Class:	III
FDA Accession Number:	0820518-000
Setting Method:	Potentiometer
Housing Material:	Plastic, ABS, Plastic, PBT
Full Encapsulation:	yes
Degree of Protection:	IP65
Connection:	M12 × 1; 4-pin
Output:	PNP NC, PNP NO: yes
