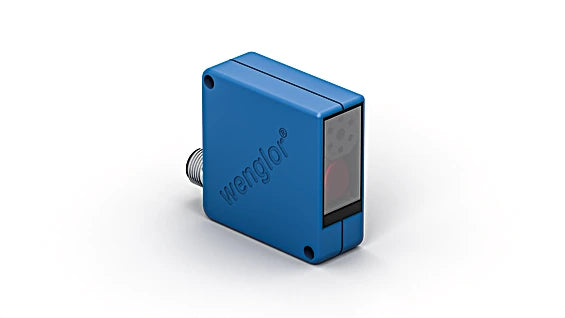

YP11MVV80 - High-Speed Analog Contrast Sensor for Quick Detection

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience rapid contrast detection with these advanced sensors, designed to provide precise readings through an analog output voltage Their high-speed performance makes them ideal for various applications requiring swift response times.

Features and Benefits:

•Analog output (0...10 V DC).

•Switching frequency: 10 kHz.

•Working Range: 50 ... 100 mm.

•Measuring Range: 50 mm.

•Resolution: 20 mV.

•Switching Hysteresis: 200 mV.

•Light Source: Laser (red).

•Wavelength: 660 nm.

•Service Life (T = +25 °C): 100,000 h.

•Laser Class (EN 60825-1): 2.

•Max. Ambient Light: 10,000 Lux.

•Light Spot Diameter: 0.5 mm at a Distance of 100 mm.

Specifications:
