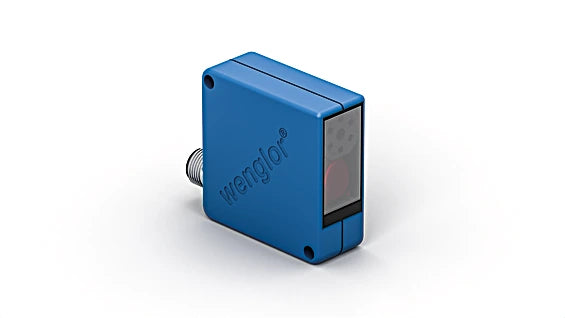

YP11MGVL80 - High-Resolution Laser Distance Sensor for Versatile Applications

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover versatile sensors capable of measuring distances with an analog output display These sensors feature high resolution and a broad range of measuring capabilities, making them suitable for a multitude of applications Notably, their output signal remains consistent regardless of the color of the object being measured.

Features and Benefits:

•Linearity: 0.5%.

•Measuring range: 50 mm.

•Resolution up to 20 µm.

•Working Range: 50 ... 100 mm.

•Measuring Distance: 75 mm.

•Resolution: 25 µm.

•Linearity Deviation: 250 µm.

•Light Source: Laser (red).

•Wavelength: 655 nm.

•Service Life (T = +25 °C): 100,000 h.

•Max. Ambient Light: 10,000 Lux.

•Light Spot Diameter: 1 mm.

Specifications:
