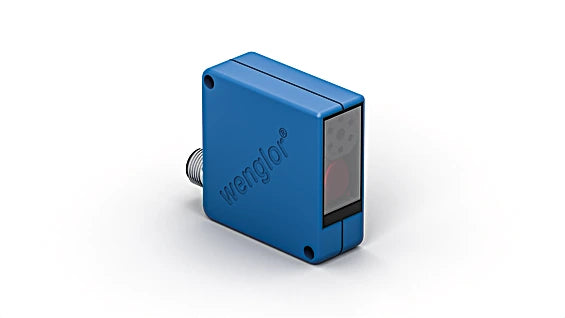

YP11MGV80 - High-Resolution Laser Distance Sensor with Analog Output

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

These advanced sensors are capable of measuring distances and providing analog output With their high-resolution capabilities and extensive range of measurement options, they are versatile enough for a wide array of applications Notably, the output signal remains largely unaffected by the color of the object being measured.

Features and Benefits:

•Cut-off frequency up to 1 kHz.

•Linearity: 0.5 %.

•Measuring range: 50 mm.

•Light Source: Laser (red).

•Wavelength: 655 nm.

•Service Life (T = +25 °C): 100,000 h.

•Max. Ambient Light: 10,000 Lux.

•Analog Output: 0...10 V.

•Short Circuit Protection: yes.

•Reverse Polarity Protection: yes.

•Overload Protection: yes.

•Degree of Protection: IP67.

Specifications:
