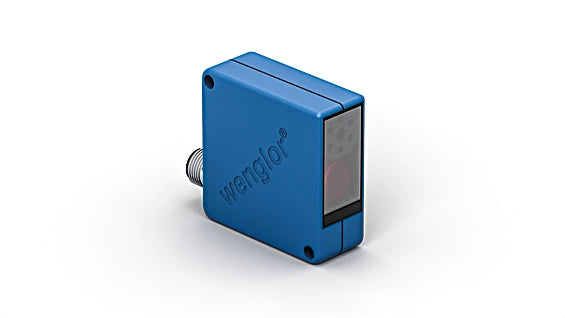

YP09PA3 - Accurate Distance Sensor for Object Recognition and Measurement

SKU: SKU: YP09PA3 Download PDF

Select a Variant:

YP09PA3 - Accurate Distance Sensor for Object Recognition and Measurement

SET THE QTY:

Now $665.00 Web pricing policy

~~BEFORE $0.00~~ Now $665.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Experience advanced distance detection with these sensors, which leverage angle measurements for exceptional object recognition in various backgrounds Their performance remains unaffected by the object's color, shape, or surface properties, ensuring reliable operation Perfect for a variety of applications, these sensors excel in versatility and accuracy.

Features and Benefits:

•Smallest recognizable distance difference: 200 µm.

•Spot diameter: 0.8 mm.

•Laser Class (EN 60825-1): 2.

•Service Life (T = +25 °C): 100,000 h.

•Max. Ambient Light: 10,000 Lux.

•Light Spot Diameter: 0.8 mm.

•Focus Distance: 110 mm.

•Overload Protection: yes.

•Short Circuit Protection: yes.

•Reverse Polarity Protection: yes.

Specifications:

Optical Data Range	100 mm
Setting Range	60 ... 100 mm
Switching Hysteresis	< 200 µm
Light Source	Laser (red)
Wavelength	660 nm
Supply Voltage	10 ... 30 V DC
Current Consumption (Ub = 24 V)	< 30 mA
Switching Frequency	1,500 Hz
Response Time	333 µs
Temperature Drift	< 15 µm/K
Temperature Range	-25 ... 60 °C
Switching Output Voltage Drop	< 2.5 V
PNP Switching Current	200 mA
Protection Class	III
Setting Method	Potentiometer
Housing Material	Plastic, PBT
Full Encapsulation	yes
Degree of Protection	IP67
Connection	M12 × 1; 4-pin
