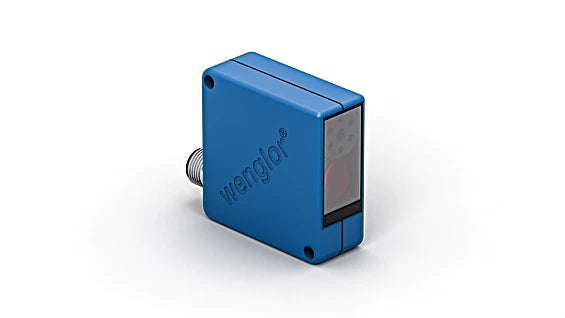

YP06MGVL80 - High-Resolution Laser Distance Sensor with Versatile Measuring Range

YP06MGVL80 - High-Resolution Laser Distance Sensor with Versatile Measuring Range

SKU: YP06MGVL80 Download PDF

Variant:
  • YP06MGVL80 - High-Resolution Laser Distance Sensor with Versatile Measuring Range
Now $1,538.00
BEFORE   $0.00 Now $1,538.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision measurement with these advanced sensors, capable of gauging distances and providing analog output Their exceptional resolution combined with a broad spectrum of measuring ranges makes them suitable for numerous applications Notably, the output signal remains largely unaffected by the color of the target object, adding to their versatility.

Features and Benefits:

    •Resolution up to 5 µm.

    •Linearity: 0,5 %.

    •Measuring range: 20 mm.

Specifications:

 Working Range 40 ... 60 mm
 Measuring Distance 50 mm
 Resolution 10 µm
 Linearity 0.5 %
 Linearity Deviation 50 µm
 Light Source Laser (red)
 Wavelength 655 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 2
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 0.5 mm
 Supply Voltage 18 ... 30 V DC
 Current Consumption (Ub = 24 V) < 30 mA
 Cut-Off Frequency 100 Hz
 Response Time 5 ms
 Temperature Drift (Tu < 10 °C, Tu > 40 °C) 10 µm/K
 Temperature Drift (10 °C < Tu < 40 °C) 7 µm/K
 Temperature Range -10 ... 60 °C
 Error Output Voltage Drop < 2.5 V
 PNP Error Output / Switching Current 200 mA
 Analog Output yes
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 Housing Material Plastic, PBT
 Optic Cover Glass
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M12 × 1; 8-pin
 Output Error Output yes
