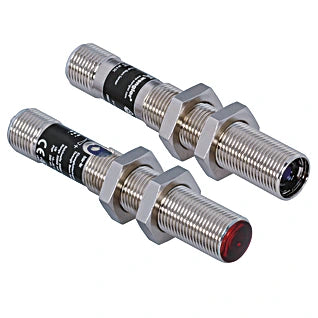

YO993 - Reliable Through-Beam Sensor for Industrial Use

YO993 - Reliable Through-Beam Sensor for Industrial Use

SKU: YO993 Download PDF

Variant:
  • YO993 - Reliable Through-Beam Sensor for Industrial Use
Now $819.00
BEFORE   $0.00 Now $819.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the reliability of these through-beam sensors, meticulously designed for industrial applications With an extensive working range, they excel in challenging, contaminated environments You can easily verify their operational status via the provided test input, ensuring optimal performance when you need it most.

Features and Benefits:

    •Adjustable focal point.

    •Test input.

Specifications:

 Range: 20,000 mm
 Smallest Recognizable Part: 50 µm
 Light Source: Laser (red)
 Wavelength: 655 nm
 Service Life (T = +25 °C): 100,000 h
 Laser Class (EN 60825-1): 2
 Beam Divergence: ~ 0.5 mrad
 Sensor Type: Emitter
 Supply Voltage: 10 ... 30 V DC
 Current Consumption (Ub = 24 V): < 20 mA
 Temperature Drift: < 10 %
 Temperature Range: -10 ... 60 °C
 Reverse Polarity Protection: yes
 Protection Class: III
 Housing Material: Brass, nickel-plated
 Full Encapsulation: yes
 Degree of Protection: IP67
 Connection: M12 × 1; 4-pin
