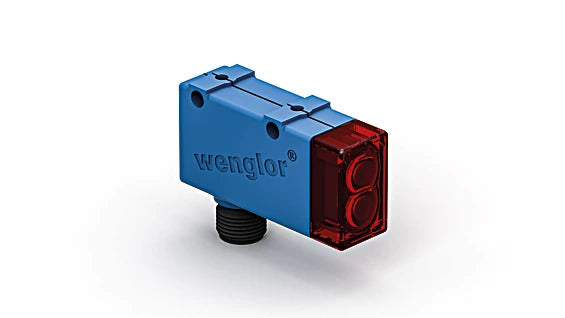

YM24PAH2ABF - High-Speed Contrast Sensor with 150mm Detection Range

SKU: SKU: YM24PAH2ABF Download PDF

Select a Variant:

YM24PAH2ABF - High-Speed Contrast Sensor with 150mm Detection Range

SET THE QTY:

Now $342.00 Web pricing policy

~~BEFORE $0.00~~ Now $342.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing advanced sensors that excel in rapidly detecting contrast differences With a high switching frequency and a compact light spot, these sensors offer a precise activated time delay They function effectively within a detection range of 150 mm, identifying settings from 60 to 150 mm, while maintaining a lateral switching hysteresis of less than 50 µm, ensuring accuracy in performance.

Features and Benefits:

•High switching frequency.

•Small light spot.

•Time delay can be activated.

•Service life of 100,000 hours at 25 °C.

•Short circuit protection.

•Reverse polarity protection.

Specifications:

Range:	150 mm
Setting Range:	60 ... 150 mm
Switching Hysteresis (Lateral Approach):	< 50 µm
Light Source:	Laser (red)
Wavelength:	660 nm
Service Life (T = +25 °C):	100,000 h
Laser Class (EN 60825-1):	1
Max. Ambient Light:	10,000 Lux
Light Spot Diameter:	1 mm
Supply Voltage:	10 ... 30 V DC
Current Consumption (Ub = 24 V):	< 30 mA
Switching Frequency:	3 kHz
Response Time:	166 µs
Off-Delay:	5 ms
Temperature Drift:	< 5 %
Temperature Range:	-10 ... 60 °C
Switching Output Voltage Drop:	< 2.5 V
PNP Switching Output / Switch Current:	200 mA
Protection Class:	III
Setting Method:	Potentiometer
Housing Material:	Plastic, PBT
Optic Cover:	Plastic, PMMA
Full Encapsulation:	yes
Degree of Protection:	IP67
Connection:	M12 × 1; 4-pin
Output PNP NC, PNP NO:	yes
