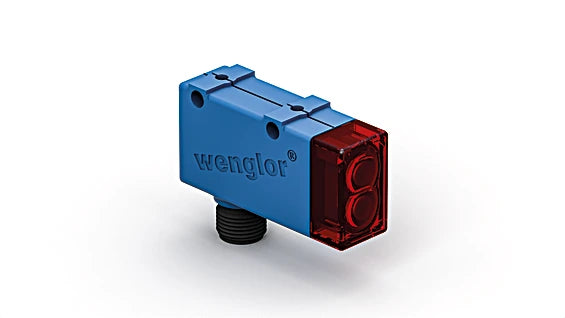

YM22PBV2 - Advanced Reflex Sensor with Background Suppression Tech

YM22PBV2 - Advanced Reflex Sensor with Background Suppression Tech

SKU: YM22PBV2 Download PDF

Variant:
  • YM22PBV2 - Advanced Reflex Sensor with Background Suppression Tech
Now $3.50
BEFORE   $0.00 Now $3.50
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing advanced sensors that excel in distance detection by measuring angles These innovative devices effectively identify objects regardless of the background, ensuring reliable performance Notably, the sensor's ability to switch on or off remains unaffected by the object's color, shape, or surface features While this product has been discontinued, it remains available for ordering Click here to explore its innovative successor.

Features and Benefits:

    •High switching frequency.

    •Large detection range.

    •Good black & white characteristics.

Specifications:

 Range 200 mm
 Setting Range 35 ... 200 mm
 Switching Hysteresis < 10 %
 Light Source Laser (red)
 Wavelength 650 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 2
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 1 mm at a Distance of 120 mm
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 20 mA
 Switching Frequency 1,600 Hz
 Response Time 313 µs
 Temperature Drift < 5 %
 Temperature Range -25 ... 60 °C
 Voltage Drop < 2.5 V
 Switching Output / Switching Current 200 mA PNP
 Contamination Output / Switching Current 50 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 MTTFd (EN ISO 13849-1) 1,787.52 a
 Contamination Output yes
 PNP NO yes
 Setting Method Potentiometer
 Housing Material Plastic, PBT
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
