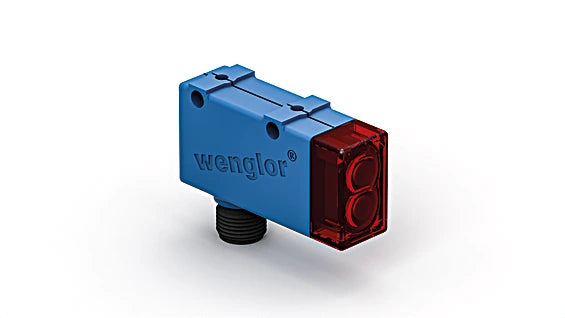

YM22PA2 - Background Suppression Distance Sensor for Accurate Object Detection

YM22PA2 - Background Suppression Distance Sensor for Accurate Object Detection

SKU: YM22PA2 Download PDF

Variant:
  • YM22PA2 - Background Suppression Distance Sensor for Accurate Object Detection
Now $3.50
BEFORE   $0.00 Now $3.50
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

These advanced sensors measure distances by assessing angles, making them highly effective at detecting objects against any backdrop Their functionality remains robust regardless of the object's color, shape, or surface texture Note that this product has been discontinued; for an upgraded option, click here to explore its innovative successor.

Features and Benefits:

    •Large detection range.

    •Good black & white characteristics.

    •High switching frequency.

Specifications:

 Range 200 mm
 Setting Range 35 ... 200 mm
 Switching Hysteresis < 10 %
 Light Source Laser (red)
 Wavelength 650 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 2
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 1 mm at a Distance of 120 mm
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 20 mA
 Switching Frequency 1,600 Hz
 Response Time 313 µs
 Temperature Drift < 5 %
 Temperature Range -25 ... 60 °C
 Voltage Drop < 2.5 V
 Switching Output PNP
 Switching Current 200 mA
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Protection Class III
 FDA Accession Number 0820359-001
 Setting Method Potentiometer
 Housing Material Plastic
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M12 × 1; 4-pin
 MTTFd (EN ISO 13849-1) 1,787.52 a
 Output PNP NC, PNP NO
 Adjustable parameters Circuit NC, NC+NO, NO
