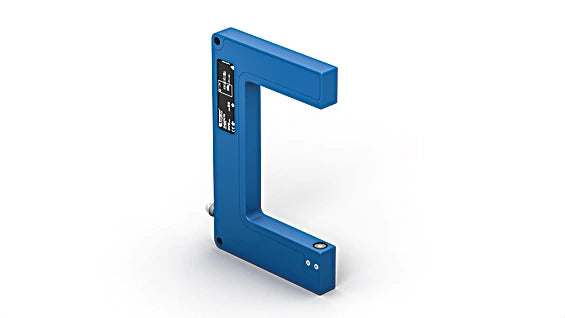

YH08NCT8 - Laser Fork Sensor for Small Parts Detection

YH08NCT8 - Laser Fork Sensor for Small Parts Detection

SKU: YH08NCT8 Download PDF

Variant:
  • YH08NCT8 - Laser Fork Sensor for Small Parts Detection
Now $342.00
BEFORE   $0.00 Now $342.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience seamless operation with this integrated light barrier, which combines both transmitter and receiver into one compact unit When the active light beam is disrupted, the output responds accordingly Utilizing visible laser technology, this sensor allows for effortless alignment towards the target object Its fine light beam creates a narrow spot across the width of the fork, making it capable of detecting even the tiniest parts, slots, holes, and notches.

This precision makes it an excellent choice for various applications where accuracy is key.

Features and Benefits:

    •Recognition of transparent objects.

    •Fine light beam (0.6 mm) over entire width of fork.

    •Repetition accuracy: 5 µm.

    •Teach-in.

Specifications:

 Fork Width 80 mm
 Smallest Recognizable Part 40 µm
 Smallest Detectable Gap 50 µm
 Switching Hysteresis < 20 µm
 Light Source Laser (red)
 Wavelength 655 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 0.6 mm
 Repeat Accuracy < 5 µm
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Switching Frequency 10 kHz
 Response Time 50 µs
 Off-Delay 0 ... 100 ms
 Temperature Range -25 ... 60 °C
 Voltage Drop < 1.5 V
 NPN Switching Output / Switching Current 200 mA
 Internal Load Switching Output 5,100 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Teach Mode NT, MT
 Protection Class III
 FDA Accession Number 0820592-000
 Setting Method Teach-In
 Housing Material Plastic, PA; Steel, nickel-plated
 Optic Cover Plastic, PC
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M8 × 1; 3-pin
 MTTFd (EN ISO 13849-1) 1,436.4 a
 Output NPN NO yes
 Adjustable parameters Circuit: NC, NC/NO
