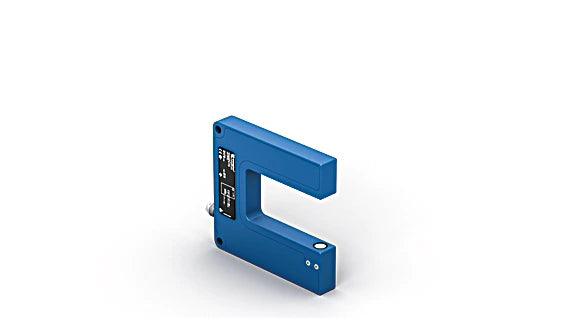

YH03NCT8 - Precision Fork Sensor with Laser Alignment for Small Parts

YH03NCT8 - Precision Fork Sensor with Laser Alignment for Small Parts

SKU: YH03NCT8   Download PDF

Select a Variant:
  • YH03NCT8 - Precision Fork Sensor with Laser Alignment for Small Parts
Qty:
Now $342.00   Web pricing policy
BEFORE   $0.00 Now $342.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a state-of-the-art light barrier that combines both transmitter and receiver into a compact design This innovative system switches its output when the active light beam is disrupted Its visible laser light feature allows for effortless alignment with any object, while the finely focused light beam produces a pinpoint spot across the fork's entire width This precision makes it an excellent choice for detecting exceedingly small components, holes, slots, and notches with ease.

Features and Benefits:

    •Repetition accuracy: 5 µm.

    •Teach-in.

    •Recognition of transparent objects.

    •Fine light beam (0.6 mm) over entire width of fork.

Specifications:

 Fork Width 30 mm
 Smallest Recognizable Part 40 µm
 Smallest Detectable Gap 50 µm
 Switching Hysteresis < 20 µm
 Light Source Laser (red)
 Wavelength 655 nm
 Service Life (T = +25 °C) 100,000 h
 Laser Class (EN 60825-1) 1
 Max. Ambient Light 10,000 Lux
 Light Spot Diameter 0.6 mm
 Repeat Accuracy < 5 µm
 Supply Voltage 10 ... 30 V DC
 Current Consumption (Ub = 24 V) < 50 mA
 Switching Frequency 10 kHz
 Response Time 50 µs
 Off-Delay 0 ... 100 ms
 Temperature Range -25 ... 60 °C
 Switching Output Voltage Drop < 1.5 V
 NPN Switching Output / Switching Current 200 mA
 Internal Load Switching Output 5,100 Ohm
 Short Circuit Protection yes
 Reverse Polarity Protection yes
 Overload Protection yes
 Teach Mode NT, MT
 Protection Class III
 FDA Accession Number 0820591-000
 Setting Method Teach-In
 Housing Material Plastic, PA; Steel, nickel-plated
 Optic Cover Plastic, PC
 Full Encapsulation yes
 Degree of Protection IP67
 Connection M8 × 1; 3-pin
 MTTFd (EN ISO 13849-1) 1,436.4 a
 Output NPN NO yes
 Adjustable parameters Circuit NC
