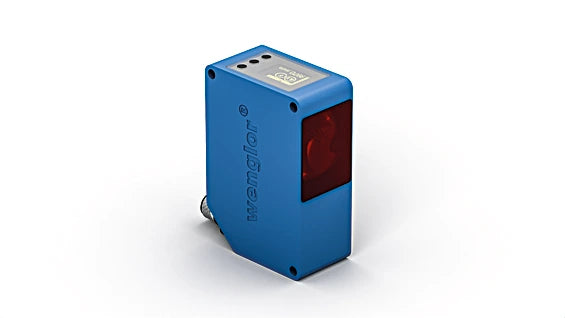

Y1TA100QXVT80 - Precision Laser Distance Sensor with Scratch-Resistant Optics

SKU: SKU: Y1TA100QXVT80 Download PDF

Select a Variant:

Y1TA100QXVT80 - Precision Laser Distance Sensor with Scratch-Resistant Optics

SET THE QTY:

Now $1,019.00 Web pricing policy

~~BEFORE $0.00~~ Now $1,019.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing our advanced sensors featuring scratch-resistant optics with the unique capability to turn off the emitted light Utilizing the transit time measurement technique, these sensors accurately gauge the distance to an object, rendering the color, shape, and surface characteristics of the object virtually irrelevant to the readings This means even darker surfaces can be detected with utmost precision, ensuring reliable performance in various conditions.

Features and Benefits:

•2 mutually independent switching outputs.

•Graphical display for easy operation.

•Switching output A1 as analog output switchable (0...10 V/4...20 mA).

•Temperature drift eliminable.

Specifications:

Working Range	0.1 ... 10.1 m
Measuring Range	10 m
Resolution	1 ... 12 mm
Linearity	0.2 %
Linearity Deviation	20 mm
Switching Hysteresis	3 ... 20 mm
Light Source	Laser (red)
Wavelength	660 nm
Service Life (T = +25 °C)	100,000 h
Laser Class (EN 60825-1)	2
Max. Ambient Light	10,000 Lux
Beam Divergence	< 2 mrad
Electrical Data	{'Supply Voltage': '18 ... 30 V DC', 'Current Consumption (Ub = 24 V)': '< 100 mA', 'Switching Frequency': '50 Hz', 'Measuring Rate': '1 ... 100 /s', 'On-/Off-Delay': '0 ... 10,000 ms', 'Temperature Drift (-10 °C < Tu < 50 °C)': '< 0.2 mm/K', 'Temperature Drift (Tu < -10 °C, Tu > 50 °C)': '< 0.4 mm/K', 'Temperature Range': '-25 ... 60 °C', 'Number of Switching Outputs': '3', 'Switching Output Voltage Drop': '< 2.5 V', 'Switching Output / Switching Current': '200 mA', 'Analog Output': '0...10 V', 'Short Circuit Protection': 'yes', 'Reverse Polarity Protection': 'yes', 'Overload Protection': 'yes', 'Interface': 'RS-232', 'Protection Class': 'III', 'FDA Accession Number': '0710891-002'}
Mechanical Data	{'Setting Method': 'Menu (OLED)', 'Housing Material': 'Plastic, ABS; Plastic, PC', 'Optic Cover': 'Plastic, PMMA', 'Degree of Protection': 'IP68', 'Connection': 'M12 × 1; 8-pin'}
Safety-relevant Data	{'MTTFd (EN ISO 13849-1)': '345.57 a', 'Output Error Output': 'yes', 'PNP NO': 'yes', 'Analog Output': 'yes', 'RS-232 Interface': 'yes', 'Adjustable parameters Analog output': '0...10 V; 4...20 mA', 'Output': 'Analog Output; Error Output; Push-pull; NPN; PNP'}
Standards and certificates	{}
Display brightness	may decrease with age. This does not result in any impairment of the sensor function.
